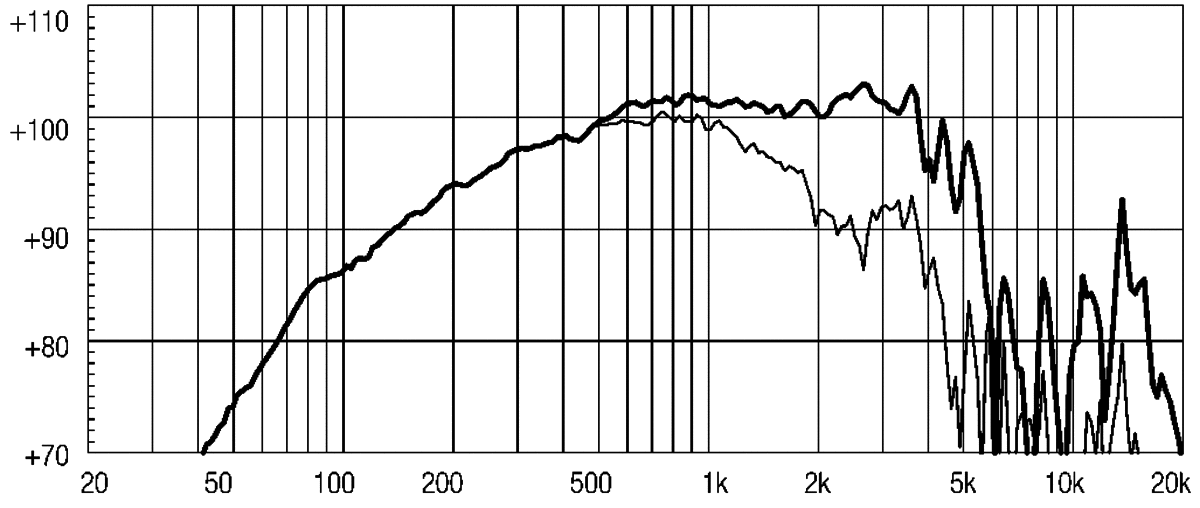

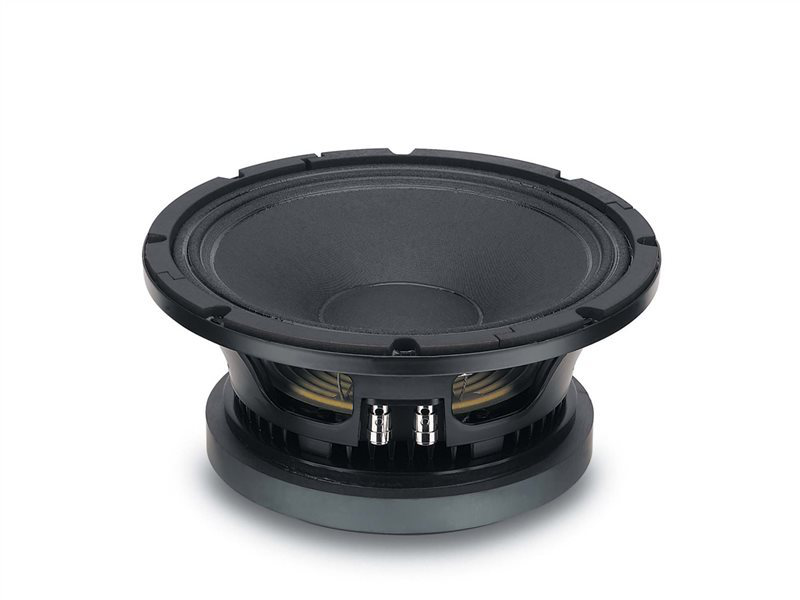

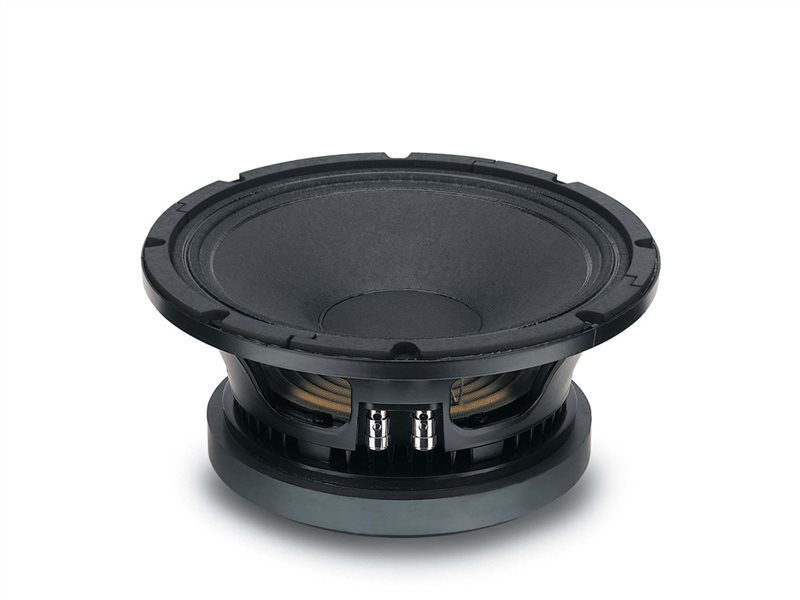

The 10M600 is a top performance 10" ferrite midrange driver which offers
high power handling capability with exceptional sensitivity over the
middle frequency band. It is suitable for either direct radiating or
horn loaded applications as part of a 3 or 4-way auditorium, touring, or
outdoor festival sound system. It is the result of an intensive
development program which aimed to produce the best 10" ferrite midrange
driver available. The smooth curvilinear paper cone has a special high
strength wood pulp composition and has been designed to achieve the
best possible linearity within the middle frequency range and to control
bell-mode resonances around the cone circumference. The cone is carried
by a double half-roll suspension composed of a material which is more
resistant to aging and fatigue than traditional materials, providing the
correct damping and excursion control. The 75 mm state-of-the-art
voice coil assembly incorporates a fine edge-wound aluminum wire
together with a strong fiberglas former to get the necessary force
factor, mass lightness and high power handling. The voice coil is
cooled using airways between the chassis back plate and the magnet face
plate, which allow heated air from the voice coil and gap to be
channeled away and dissipated by the chassis basket. This technology is
another product of 3D CAD resource application by our engineers. The
magnetic structure has also been optimized using our in-house FEA CAD
resource which has maximized the flux density in the voice coil gap. A
special treatment is applied to both the top and back plates making them
more resistant to the corrosive effects of salts and oxidation. This
treatment is more effective than any other treatment in use today.
DATENBLATT

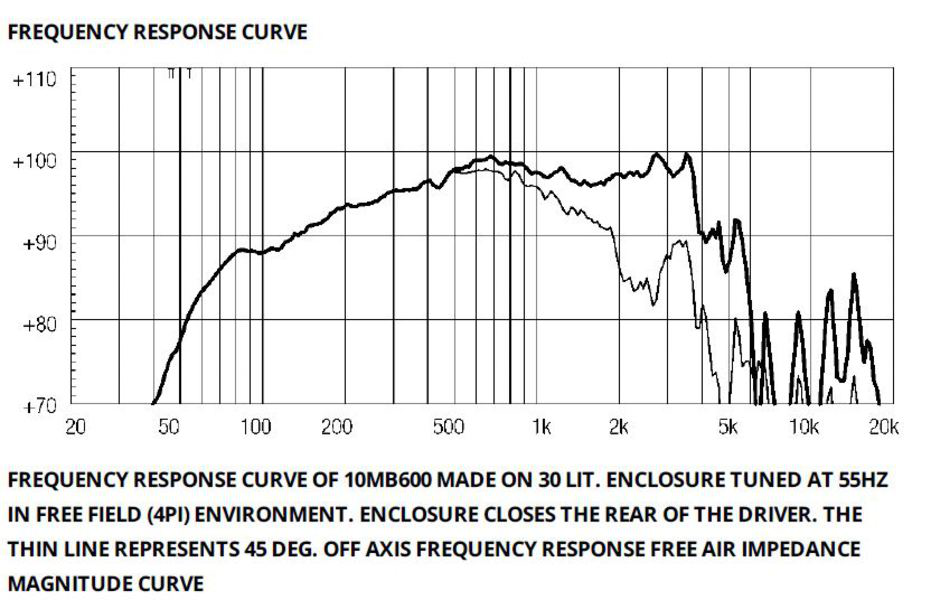

The 10MB600 mid-bass transducer represents a development of the 10M600
midrange, combining excellent linearity with high efficiency and high
power handling capabilities. The 10MB600 is primarily intended for use
as a midbass driver in extremely compact 2-way reflex enclosures between
10 and 40 lt. Its curvilinear paper cone is formed using a special high
strength wood pulp, designed to achieve the best possible rigidity and
stiffness. An exclusive treatment is also applied to the cone to
increase its water repellent properties. The 75 mm state-of-the-art
voice coil is similar to those fitted to our top-of-the-range 18" and
15" models but it is wound with aluminum wire. The coil also employs our
Interleaved Sandwich Voice coil (ISV) technology. A high strength
fiberglas former carries windings on both the outer and inner surfaces
to achieve a mass balanced coil, resulting in an extremely linear motor
assembly with a reduced tendency for eccentric behavior when driven
hard. The voice coil cooling is achieved using airways between the
chassis back plate and the face plate of the magnet which allow heated
air from the voice coil and gap to be channeled away and dissipated by
the chassis basket. This technology is a result of 3D CAD resource
application by our engineers. The top and back plates of the magnet
assembly have been designed to optimise flux density and BL factor in
the air gap also using our in-house FEA CAD facility. In addition, a
special treatment is applied to the top and back plates making the
transducer far more resistant to the corrosive effects of salts and
oxidization. Hence, the equipment is able to perform outdoors in
inclement weather conditions.DATENBLATT
The 10MB600 mid-bass transducer represents a development of the 10M600
midrange, combining excellent linearity with high efficiency and high
power handling capabilities. The 10MB600 is primarily intended for use
as a midbass driver in extremely compact 2-way reflex enclosures between
10 and 40 lt. Its curvilinear paper cone is formed using a special high
strength wood pulp, designed to achieve the best possible rigidity and
stiffness. An exclusive treatment is also applied to the cone to
increase its water repellent properties. The 75 mm state-of-the-art
voice coil is similar to those fitted to our top-of-the-range 18" and
15" models but it is wound with aluminum wire. The coil also employs our
Interleaved Sandwich Voice coil (ISV) technology. A high strength
fiberglas former carries windings on both the outer and inner surfaces
to achieve a mass balanced coil, resulting in an extremely linear motor
assembly with a reduced tendency for eccentric behavior when driven
hard. The voice coil cooling is achieved using airways between the
chassis back plate and the face plate of the magnet which allow heated
air from the voice coil and gap to be channeled away and dissipated by
the chassis basket. This technology is a result of 3D CAD resource
application by our engineers. The top and back plates of the magnet
assembly have been designed to optimise flux density and BL factor in
the air gap also using our in-house FEA CAD facility. In addition, a
special treatment is applied to the top and back plates making the
transducer far more resistant to the corrosive effects of salts and
oxidization. Hence, the equipment is able to perform outdoors in
inclement weather conditions.DATENBLATT
The 10NDA610 is a high power, very high output, state-of-the-art
midrange transducer for high quality professional use. The high level of
sound reproduction is achieved thanks to extensive research by Eighteen
Sound engineers, which focused on implementing mid frequencies
intelligibility. The 10NDA610 is ideally used as a midrange in both
horn and direct radiation, closed or reflex enclosures, as small as 4
liters. The 10NDA610 incorporates an Active Impedance Control (A.I.C.)
consisting of an additional coil fixed on the pole piece and connected
in parallel to the moving coil. The magnetic field generated by this
coil has the following effects: 1) Impedance linearization 2) Acoustic
and electric phase linearization 3) Significant increase of
sensitivity and total SPL 4) Total harmonic distortion reduction 5)
Constant power transfer The A.I.C. offers substantial advantages to the
sound quality by not absorbing the moving coil's electromagnetic
energy. The extremely powerful external neodymium magnet assembly
assures high flux concentration, low power compression and excellent
heat exchange. The levels of force factor and power handling are
consequently at a top professional level, with the best power to weight
ratio on the market today. The curvilinear cone, made with a high
damping wood pulp, has been designed to achieve the best possible
linearity within its frequency range. The in-house developed cone
treatment acts as humidity repellent and significantly dampens bell mode
resonances. The 75mm edge-wound voice coil assembly is wound on a
strong fiberglas former to improve force transmission and power
handling. A proprietary humidity-block cone treatment makes the
transducer suitable for outdoor use in adverse weather conditions. In
addition, a special coating applied to both the top and back plates
makes the 10NDA610 far more resistant to the corrosive effects of salts
and oxidization.DATENBLATT

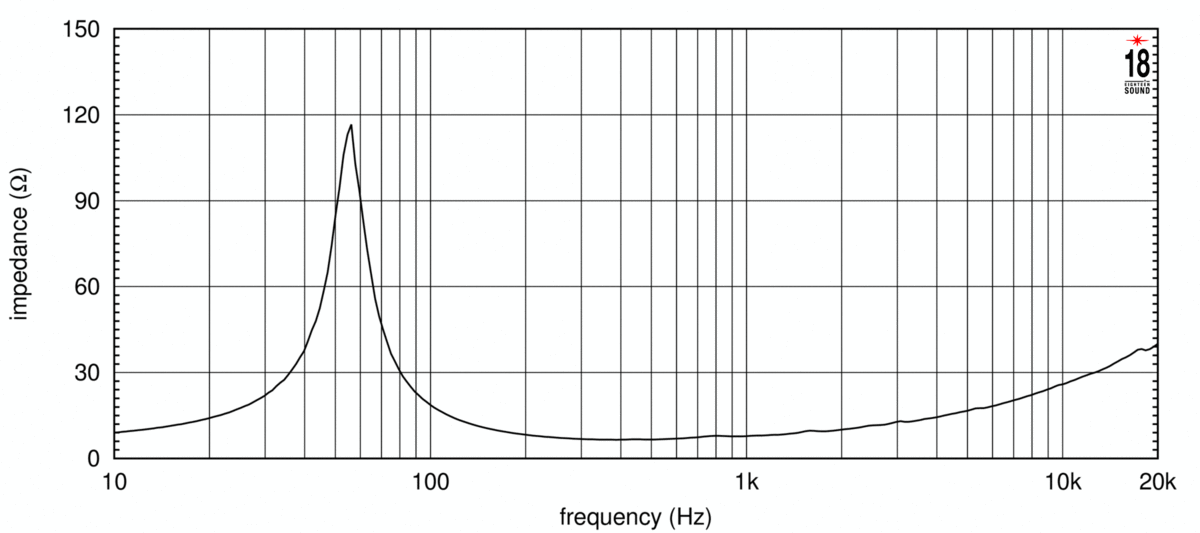

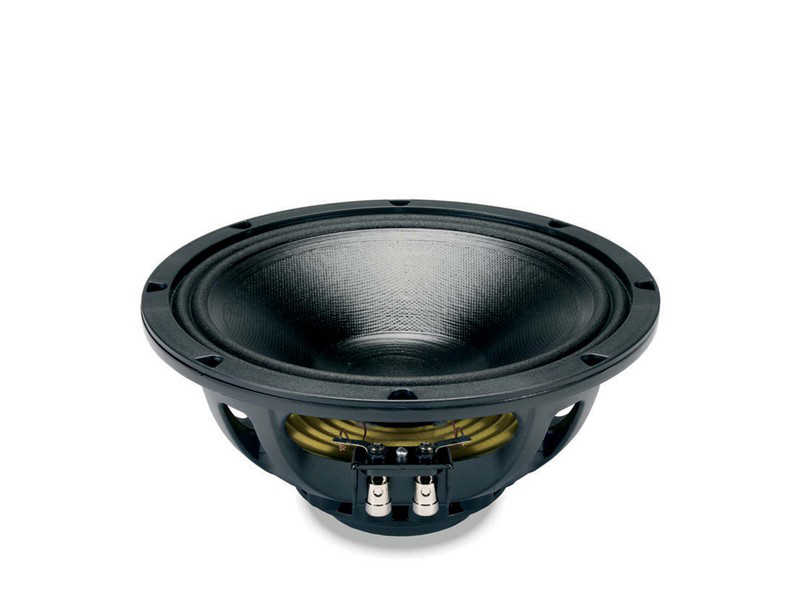

The 10NMB420 neodymium transducer has been developed in response to a
specific market requirement for a 10" midbass driver that combines
excellent linearity with good efficiency and high power handling
capabilities. The 10NMB420 is primarily intended for use as a midbass
driver in line-arrays as well as high quality 2-way or multiway reflex
enclosures. The low pass filter might be positioned as high as 2000Hz.
The extremely powerful external neodymium magnet assembly assures high
flux concentration, low power compression and excellent heat exchange.
The levels of force factor and power handling are, as a consequence, at
the upper professional level with best power to weight ratio. The 65mm Ø
state-of-the-art, aluminum wire voice coil employs Interleaved Sandwich
Voice coil (ISV) technology. It is composed by a high strength
fiberglas former used to carry windings on both the outer and inner
surfaces, in order to achieve a mass balanced coil. This results in an
extremely linear motor assembly which, in conjunction with the highly
advanced design of the magnetic structure, provides a high BL force
factor. The voice coil is cooled through airways placed between the
chassis back plate and the magnet faceplate. In this way heated air is
channeled away from the voice coil and the gap. Another technology
present into the 10NMB420 is the SDR (Single Demodulating Ring), used to
reproduce instantaneous peak on mid frequencies, reducing
intermodulation distortion. Thanks to the increasing use during outdoor
audio events, the ability to perform in humid environments is an extra
key feature of the 10NMB420. This is achieved trough an exclusively
developed cone treatment which renders the cone humidity repellent while
does not increasing the total moving speaker mass.DATENBLATT
The 10NMB420 neodymium transducer has been developed in response to a
specific market requirement for a 10" midbass driver that combines
excellent linearity with good efficiency and high power handling
capabilities. The 10NMB420 is primarily intended for use as a midbass
driver in line-arrays as well as high quality 2-way or multiway reflex
enclosures. The low pass filter might be positioned as high as 2000Hz.
The extremely powerful external neodymium magnet assembly assures high
flux concentration, low power compression and excellent heat exchange.
The levels of force factor and power handling are, as a consequence, at
the upper professional level with best power to weight ratio. The 65mm Ø
state-of-the-art, aluminum wire voice coil employs Interleaved Sandwich
Voice coil (ISV) technology. It is composed by a high strength
fiberglas former used to carry windings on both the outer and inner
surfaces, in order to achieve a mass balanced coil. This results in an
extremely linear motor assembly which, in conjunction with the highly
advanced design of the magnetic structure, provides a high BL force
factor. The voice coil is cooled through airways placed between the
chassis back plate and the magnet faceplate. In this way heated air is
channeled away from the voice coil and the gap. Another technology
present into the 10NMB420 is the SDR (Single Demodulating Ring), used to
reproduce instantaneous peak on mid frequencies, reducing
intermodulation distortion. Thanks to the increasing use during outdoor
audio events, the ability to perform in humid environments is an extra
key feature of the 10NMB420. This is achieved trough an exclusively
developed cone treatment which renders the cone humidity repellent while
does not increasing the total moving speaker mass.
DATENBLATT

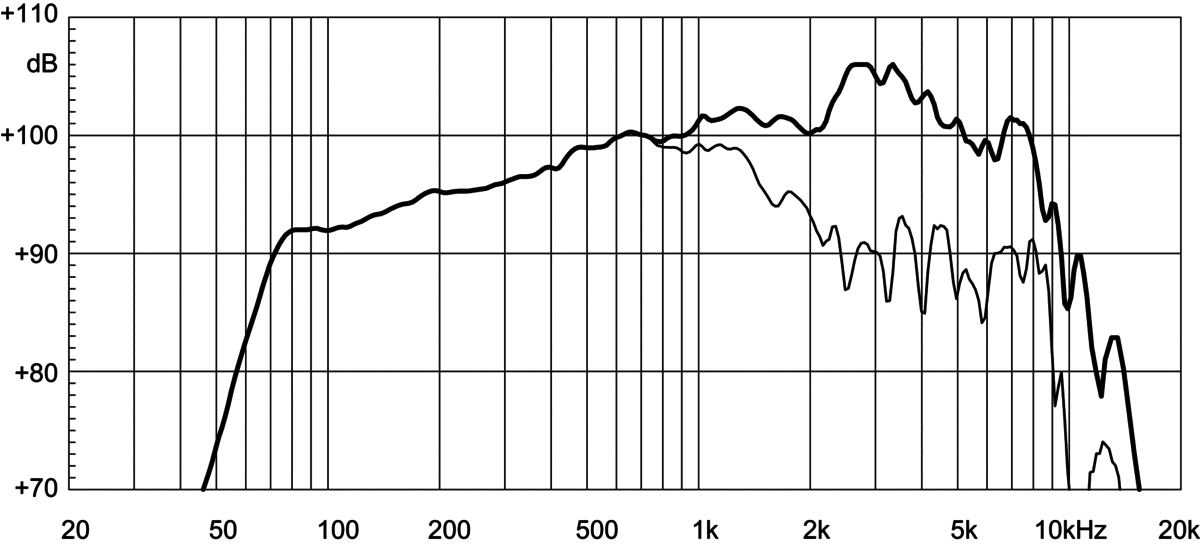

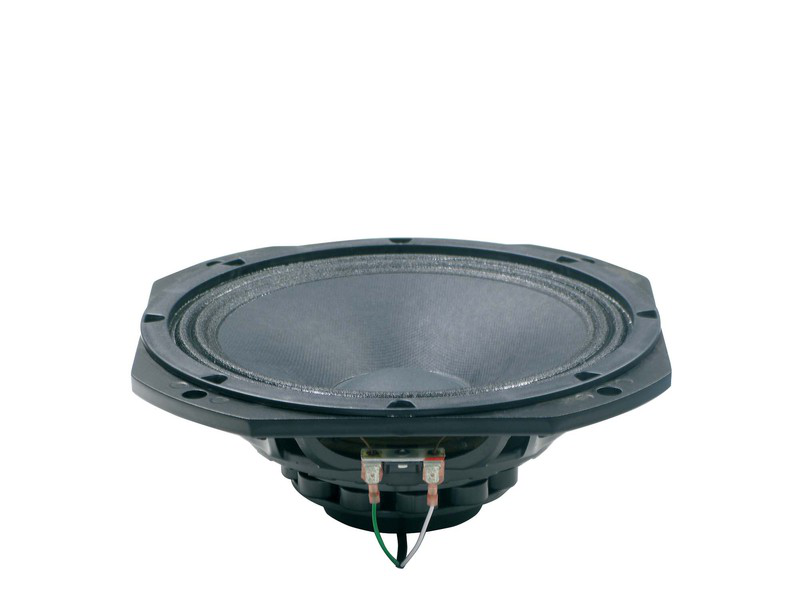

The 10NMBA520 is the evolution of the 10NDA520. The transducer is a 10"
mid-bass transducer created for compact reflex 2-way enclosures, and
when compared to 10NDA520 shows 1 dB increased sensitivity over all
operative frequency range, as well as 600 Watts program power handling.
It can be used in mid-low sections on line-array systems and everywhere
very high quality mid-bass frequency range reproduction is needed. The
10NMBA520 incorporates Active Impedance Control technology (AIC),
consisting of an additional coil fixed on the pole piece and connected
in parallel to the moving coil. The magnetic field generated by AIC
coil has the following effects: 1) Impedance linearization 2) Acoustic
and electric phase linearization 3) Significant increase of
sensitivity and total SPL 4) Total harmonic distortion reduction 5)
Constant power transfer By not absorbing the moving coil's
electromagnetic energy, the AIC offers substantial advantages to the
sound quality. The external neodymium magnet assembly assures high flux
concentration, low power compression and excellent heat exchange. The
curvilinear cone, specified with a high damping wood pulp has been
designed to achieve the best possible linearity within its frequency
range. The 65 mm (2,5 in) diameter aluminum voice coil is wound on a
strong fiberglas former in order to improve force transmission and power
handling. A special coating applied to both the top and back plates
makes the 10NMBA520 far more resistant to the corrosive effects of salts
and oxidization.DATENBLATT

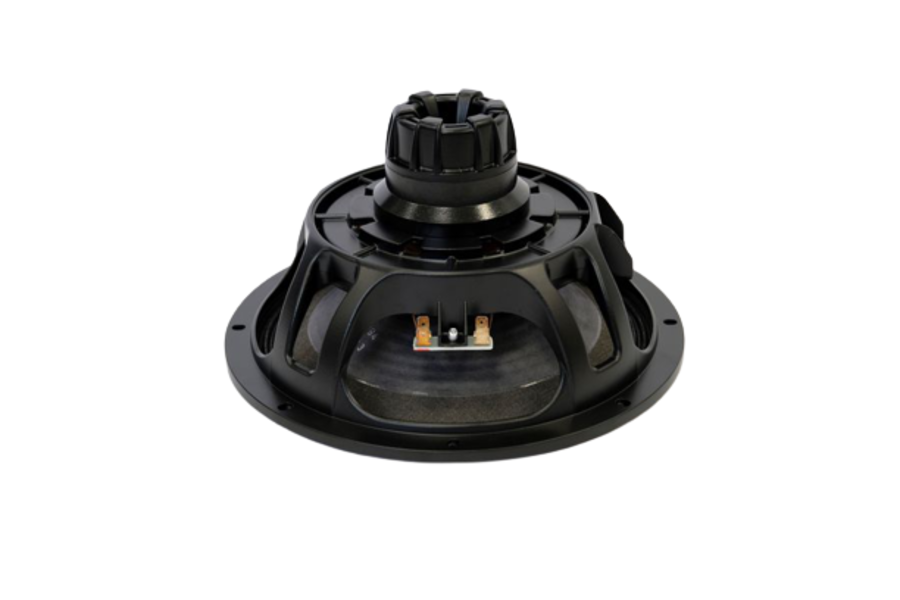

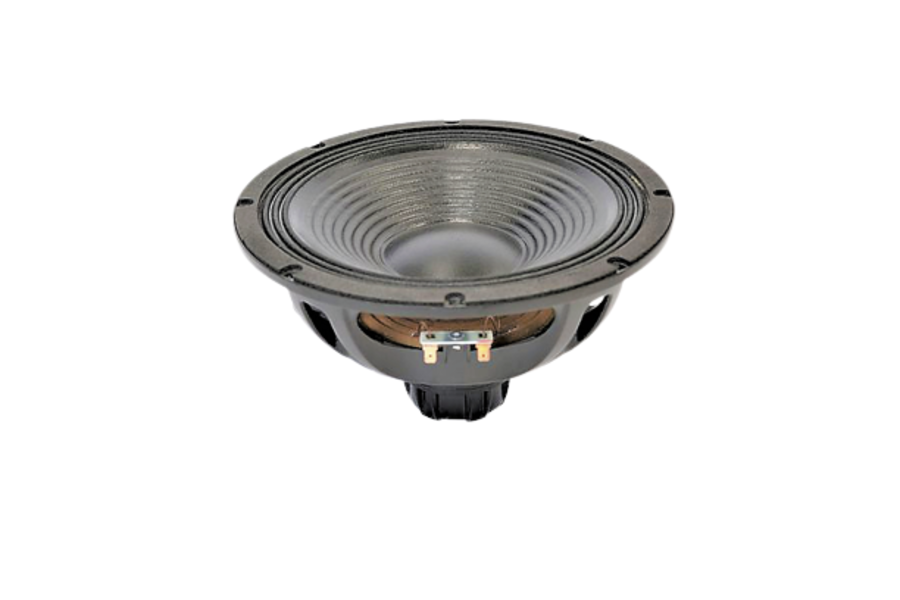

The 10NTLS2000 represents the latest 18sound technology for high
quality, low distortion applications. The Tetracoil technology maximize
benefits in terms of thermal dissipation and Bl symmetry, making the
10NTLS2000 the perfect component both as a woofer and a midbass.Dual
gap motors linearize inductance and the perfect balance we reached
between the motor and the ultra linear suspension allows both very high
excursion and extreme precision in the mid band with the lowest
intermodulation distortion in the professional market.This features,
together with its extreme low weight make the 10NTLS2000 the perfect
component for highest quality line arrays and two way systems, thanks
also to its 700 watts power handling capabilities. DATENBLATT

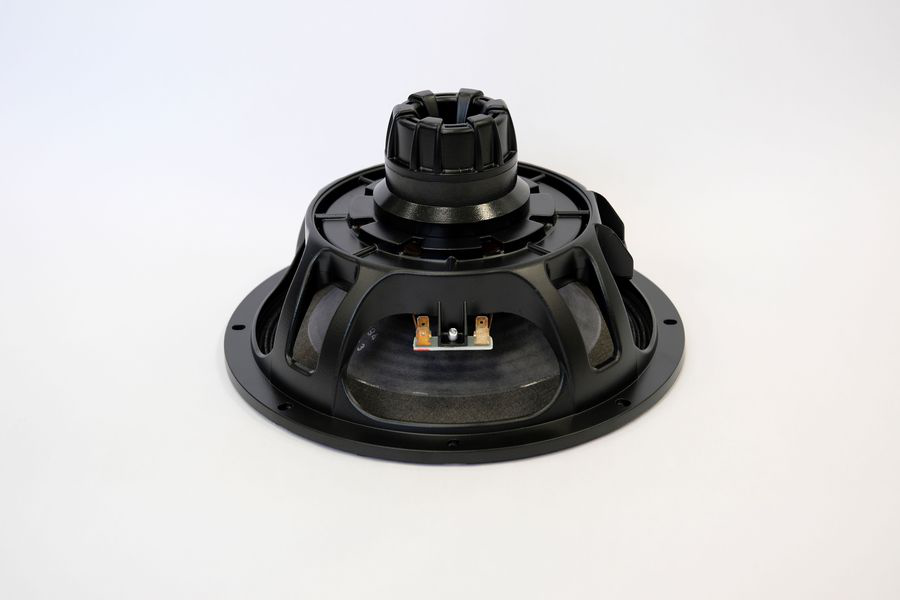

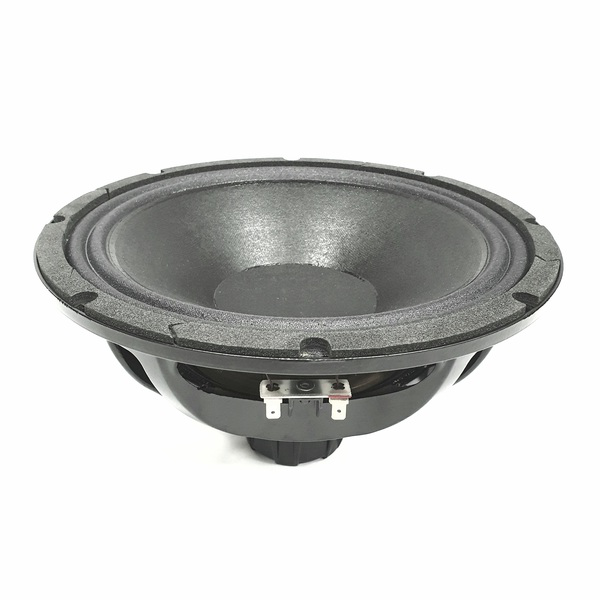

The 10NTLW2000 represents the latest 18sound technology for high
quality, low distortion applications. The Dual gap technology maximize
benefits in terms of thermal dissipation and Bl symmetry, making the
10NTLW2000 the perfect midbass for high quality professional systems.Dual
gap motors linearize inductance and the perfect balance we reached
between the motor and the ultra linear suspension allows both very high
excursion and extreme precision in the mid band with the lowest
intermodulation distortion in the professional market.This features,
together with its extreme low weight make the 10NTLW2000 the perfect
component for highest quality line arrays and two way systems, thanks
also to its 600 watts power handling capabilities. DATENBLATT
The 10NTLW2000 represents the latest 18sound technology for high
quality, low distortion applications. The Dual gap technology maximize
benefits in terms of thermal dissipation and Bl symmetry, making the
10NTLW2000 the perfect midbass for high quality professional systems.Dual
gap motors linearize inductance and the perfect balance we reached
between the motor and the ultra linear suspension allows both very high
excursion and extreme precision in the mid band with the lowest
intermodulation distortion in the professional market.This features,
together with its extreme low weight make the 10NTLW2000 the perfect
component for highest quality line arrays and two way systems, thanks
also to its 600 watts power handling capabilities. DATENBLATT

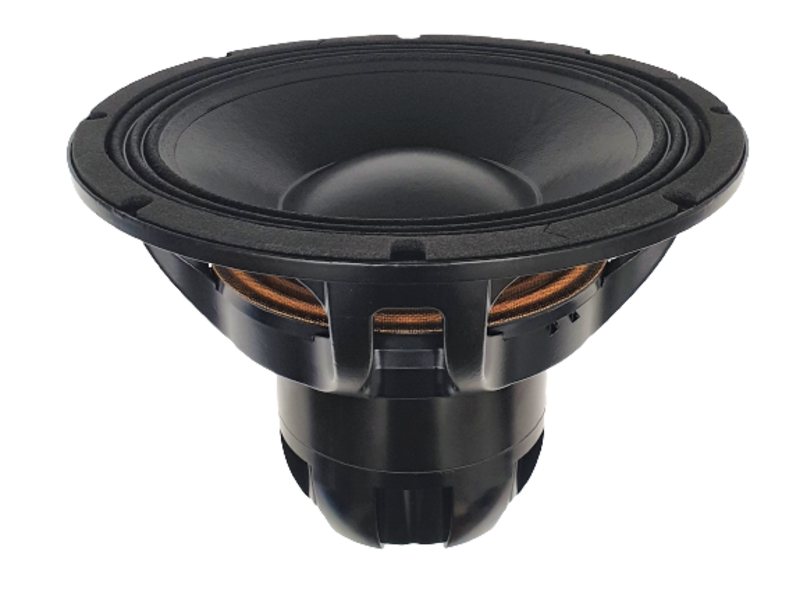

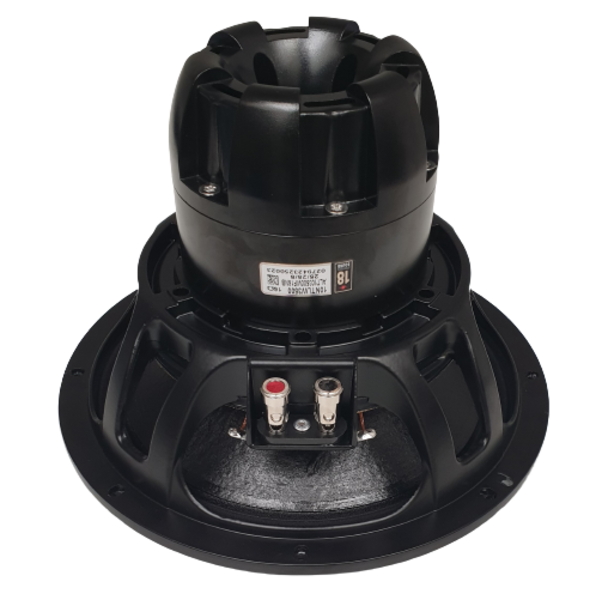

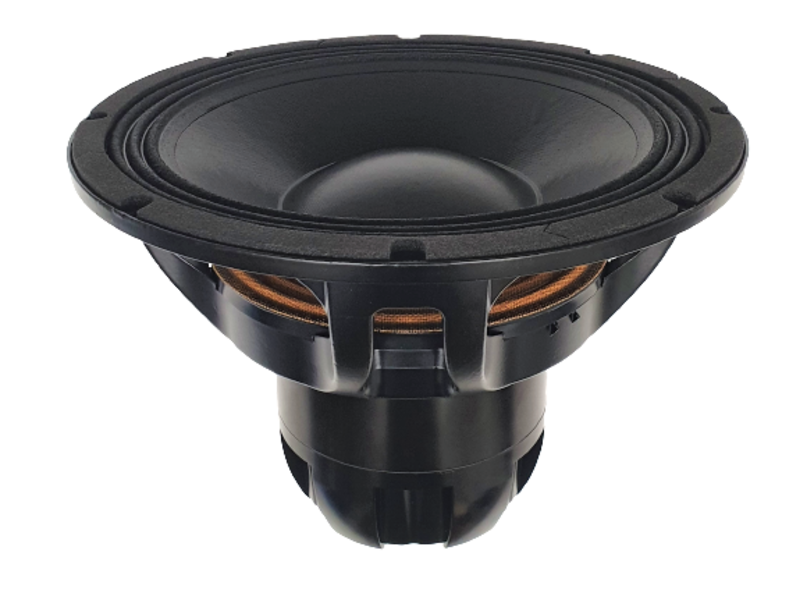

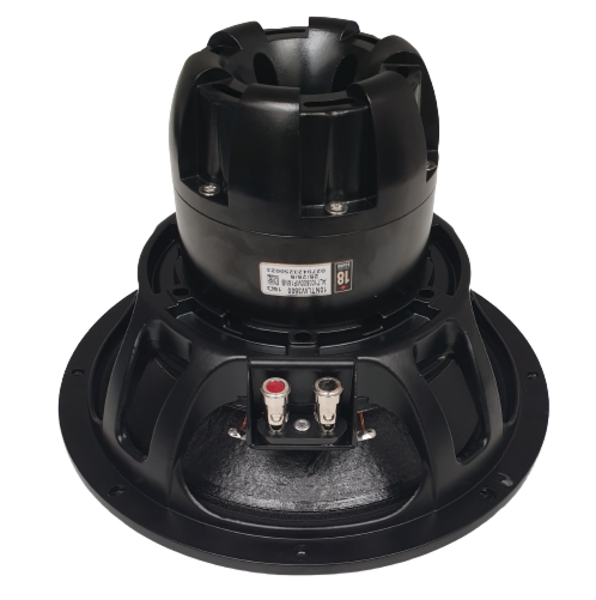

The 10NTLW3500 represents the last add on to the dual gap family, which
is the state of the art of 18sound components and technology for high
power, finest quality applications.The dual gap technology comes
directly from the Tetracoil motor structure and applies its benefits to a
wider frequency band, making the 10NTLW3500 capable of working
perfectly both as a woofer and as a midbass with unmatched power and the
lowest distortion/pressure ratio in this dimension.Optimized
thermal conductivity allows great power handling (up to 1600 watts), the
extremely balanced Bl shape together with the ultra linear suspension,
maximizes Spl keeping the lowest intermodulation distortion in the
market, giving the 10NTLW3500 the amazing capability of reproducing a
deep and full low end, together with perfect clarity mids. Both magnetic
gaps are also equipped with two separated single demodulating rings. This
unique features, makes the 10NTLW3500 the perfect component for highest
quality line arrays and two way systems without the need of a midband
dedicated component.
DATENBLATT
The 10NTLW3500 represents the last add on to the dual gap family, which
is the state of the art of 18sound components and technology for high
power, finest quality applications.The dual gap technology comes
directly from the Tetracoil motor structure and applies its benefits to a
wider frequency band, making the 10NTLW3500 capable of working
perfectly both as a woofer and as a midbass with unmatched power and the
lowest distortion/pressure ratio in this dimension.Optimized
thermal conductivity allows great power handling (up to 1600 watts), the
extremely balanced Bl shape together with the ultra linear suspension,
maximizes Spl keeping the lowest intermodulation distortion in the
market, giving the 10NTLW3500 the amazing capability of reproducing a
deep and full low end, together with perfect clarity mids. Both magnetic
gaps are also equipped with two separated single demodulating rings. This
unique features, makes the 10NTLW3500 the perfect component for highest
quality line arrays and two way systems without the need of a midband
dedicated component.DATENBLATT

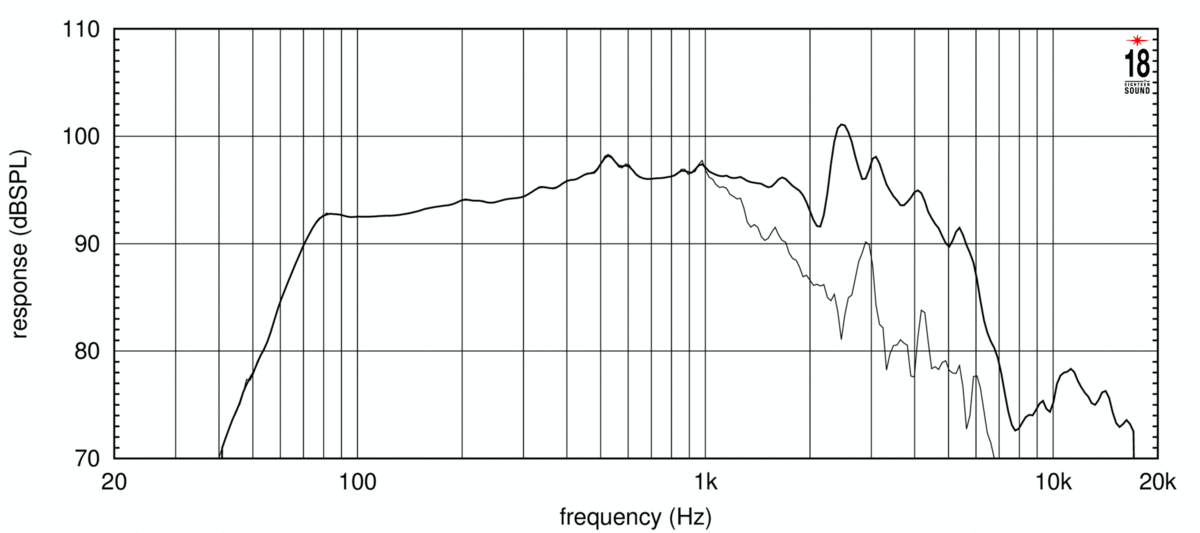

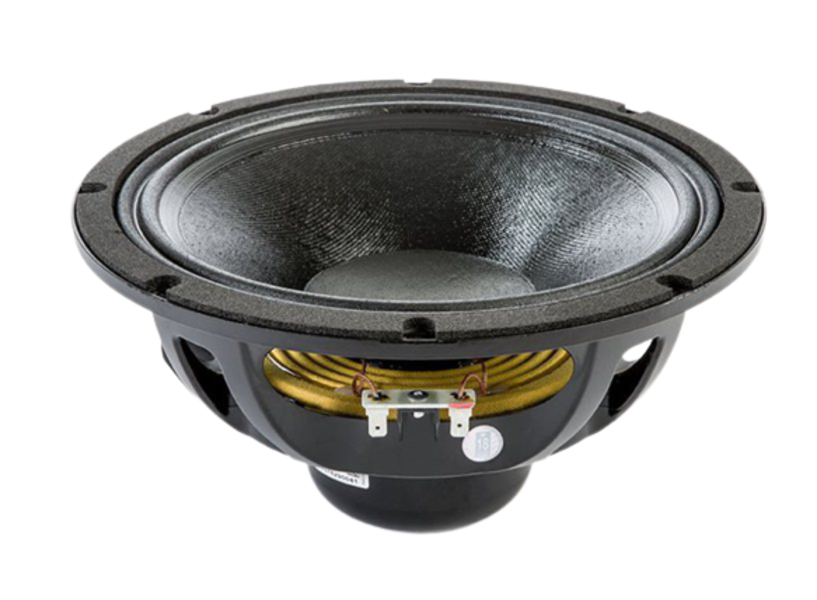

The 10NW650 is a neodymium 10 inch size woofer. The transducer has been
developed in response to a specific market requirement for a light
weight design that combines excellent linearity with high power handling
capabilities. The 10NW650 is primarily intended for use as a low
frequency driver for line-arrays as well as high quality 2-way or
multiway reflex enclosures. The low pass filter might be positioned as
high as 2000Hz. The high grade neodymium magnet assembly assures high
flux concentration and low power compression. The levels of force factor
and power handling are, as a consequence, at the upper professional
level with best power to weight ratio. The 65mm Ø state-of-the-art,
edgewound aluminum wire voice coil is wound on a high strength fiberglas
former. The voice coil is cooled through airways placed between the
chassis back plate and the magnet faceplate and carefully designed
ventilation ducts made into the metal back plate. The curvilinear paper
cone is formed using a special high strength wood pulp, designed to
achieve the best possible rigidity and stiffness. Due to the increasing
use during outdoor audio events, the ability to perform in humid
environments is an extra key feature of the 10NW650. This is achieved
trough an exclusively developed cone treatment which renders the cone
humidity repellent while does not increasing the total moving speaker
mass. In addition, a special epoxy treatment is applied to the top and
back plates making the transducer far more resistant to the corrosive
effects of salts and oxidization.DATENBLATT
The 10NW650 is a neodymium 10 inch size woofer. The transducer has been
developed in response to a specific market requirement for a light
weight design that combines excellent linearity with high power handling
capabilities. The 10NW650 is primarily intended for use as a low
frequency driver for line-arrays as well as high quality 2-way or
multiway reflex enclosures. The low pass filter might be positioned as
high as 2000Hz. The high grade neodymium magnet assembly assures high
flux concentration and low power compression. The levels of force factor
and power handling are, as a consequence, at the upper professional
level with best power to weight ratio. The 65mm Ø state-of-the-art,
edgewound aluminum wire voice coil is wound on a high strength fiberglas
former. The voice coil is cooled through airways placed between the
chassis back plate and the magnet faceplate and carefully designed
ventilation ducts made into the metal back plate. The curvilinear paper
cone is formed using a special high strength wood pulp, designed to
achieve the best possible rigidity and stiffness. Due to the increasing
use during outdoor audio events, the ability to perform in humid
environments is an extra key feature of the 10NW650. This is achieved
trough an exclusively developed cone treatment which renders the cone
humidity repellent while does not increasing the total moving speaker
mass. In addition, a special epoxy treatment is applied to the top and
back plates making the transducer far more resistant to the corrosive
effects of salts and oxidization.DATENBLATT

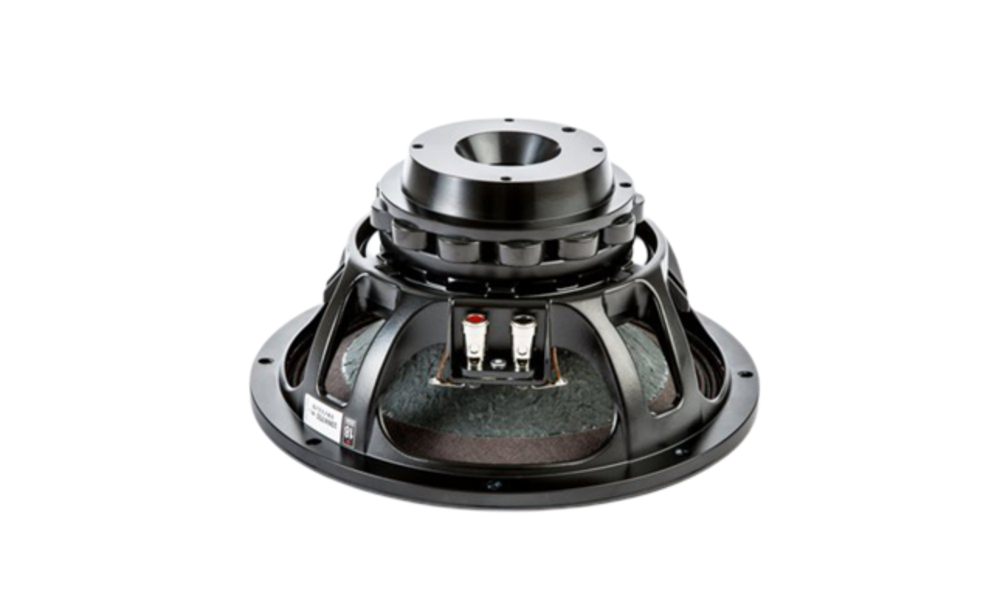

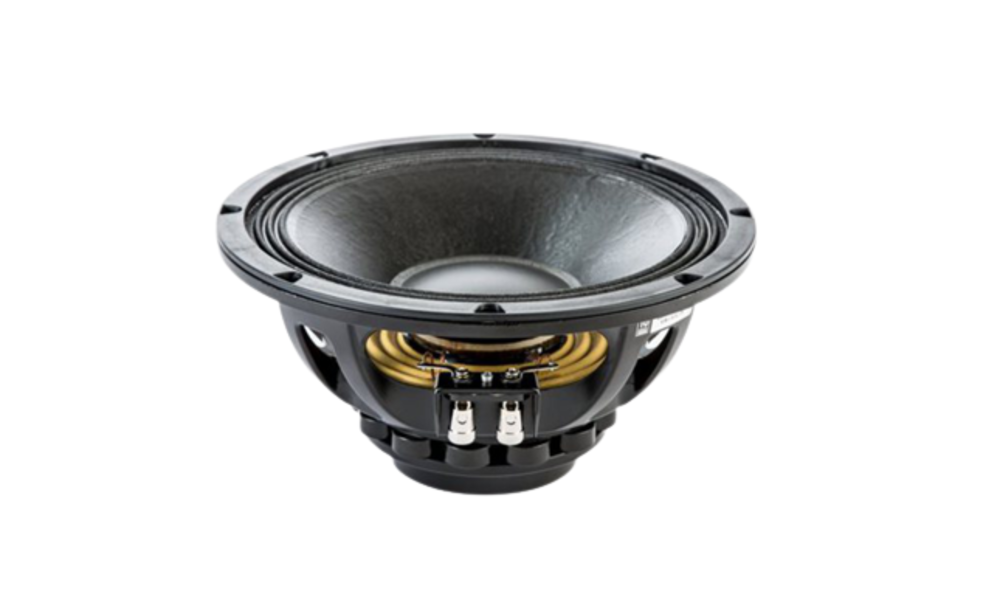

18 Sound’s 10NW750 neodymium low frequency transducer is a
state-of-the-art 10-inch woofer that combines excellent linearity with
high power handling capabilities (900 W) and reduced power compression.
The external neodymium magnet assembly assures high flux concentration
and excellent heat exchange. The 75mm (3 in) inside outside aluminum
voice coil employs Interleaved Sandwich Voice coil (ISV) technology.
A sophisticated distortion reduction system has been implemented using a
demodulating ring for flux modulation cancellation related to voice
coil excursion, together with a copper ring for the reduction of
intermodulation distortion.
The cone is treated against extremely aggressive environment conditions.
The compact size makes the 10NW750 an ideal choice for high performance line arrays and compact two-way systems. DATENBLATT
18 Sound’s 10NW750 neodymium low frequency transducer is a
state-of-the-art 10-inch woofer that combines excellent linearity with
high power handling capabilities (900 W) and reduced power compression.
The external neodymium magnet assembly assures high flux concentration
and excellent heat exchange. The 75mm (3 in) inside outside aluminum
voice coil employs Interleaved Sandwich Voice coil (ISV) technology.
A sophisticated distortion reduction system has been implemented using a
demodulating ring for flux modulation cancellation related to voice
coil excursion, together with a copper ring for the reduction of
intermodulation distortion.
The cone is treated against extremely aggressive environment conditions.
The compact size makes the 10NW750 an ideal choice for high performance line arrays and compact two-way systems. DATENBLATT

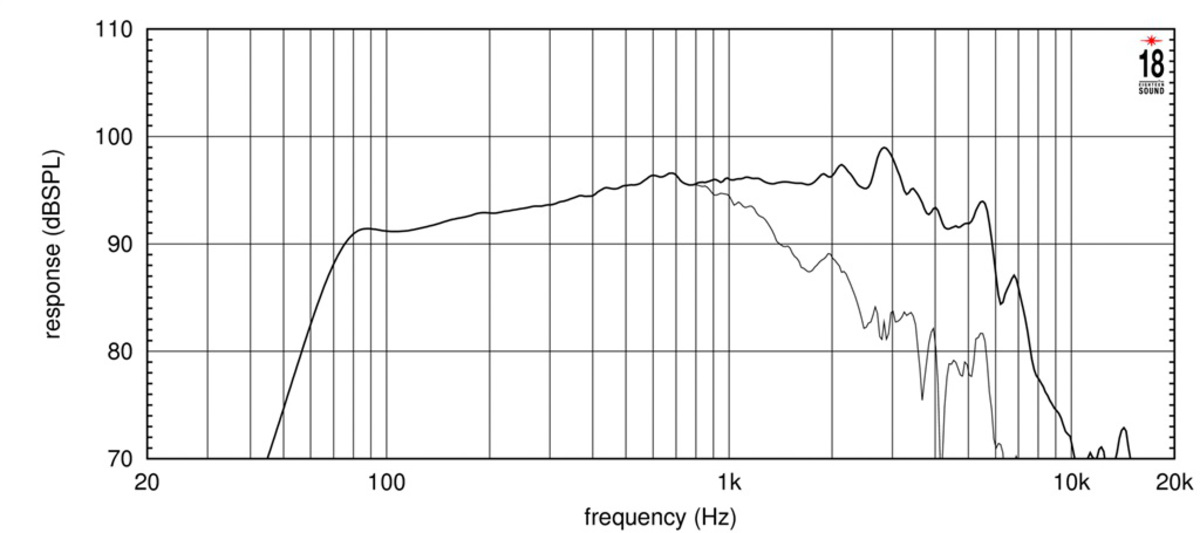

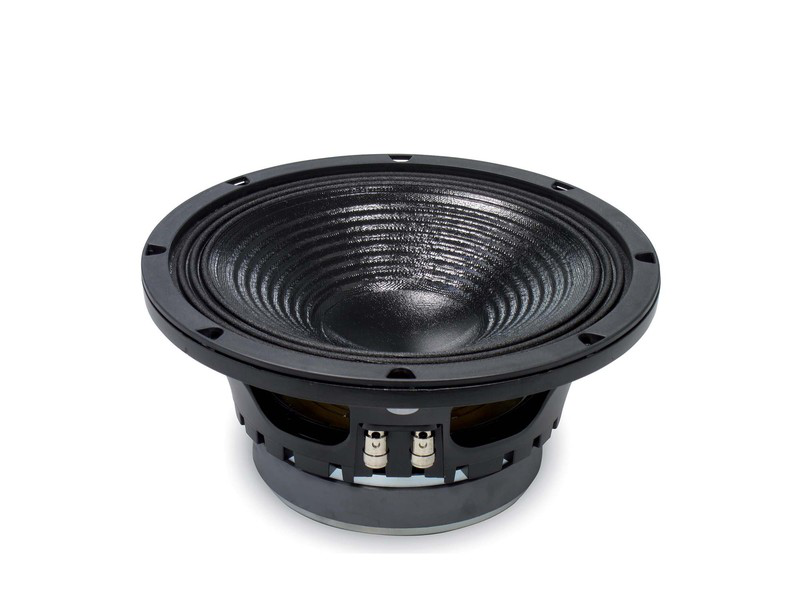

The 10W500 is a low frequency driver designed to satisfy the need for a
10" ferrite loudspeaker combining excellent linearity with good
sensitivity and power handling characteristics. The transducer is the
evolution of the 10W400, and is primarily recommended for compact bass
reflex systems in enclosures as small as 25 lt. The paper curvilinear
cone is carried by a dampened linen, triple roll front suspension to
control vibration modes that ensures good travel control and linear
excursion. The 50 mm diameter copper wire voice coil employs the
Interleaved Sandwich Voice coil (ISV) technology, where a high strength
fiberglas former carries windings on both the outer and inner surfaces
to achieve a mass balanced coil. This results in an extremely linear
motor assembly which, in conjunction with the highly advanced design of
the magnetic structure, provides a high force factor or BL. Another
feature of 10W500 is the fine air channels between the chassis back
plate and the top plate of the magnet, which draw heated air out from
the voice coil gap and dissipate the energy through the chassis casting.
The top and back plates of the magnet assembly have been designed to
optimise flux density and BL factor in the air gap using our in-house
FEA CAD facility. DATENBLATT

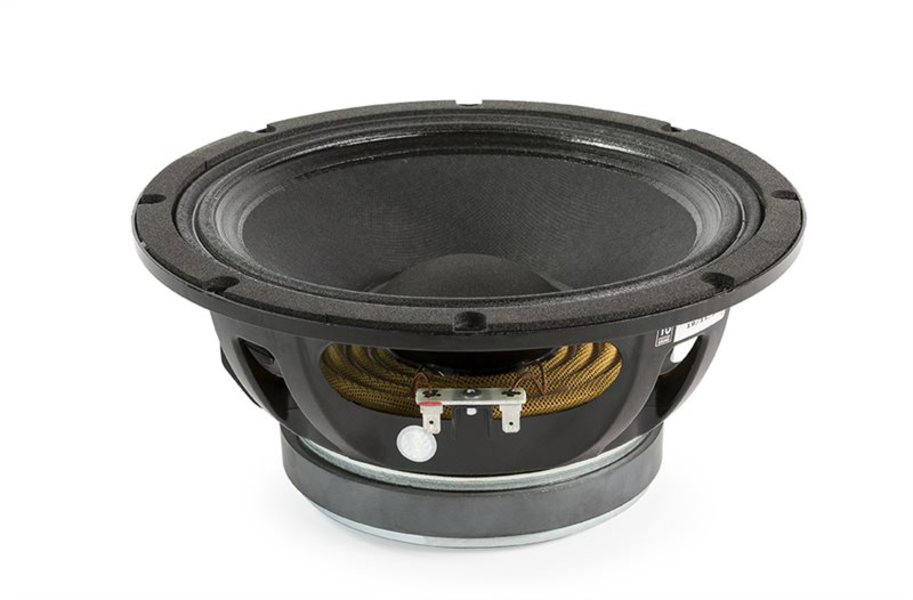

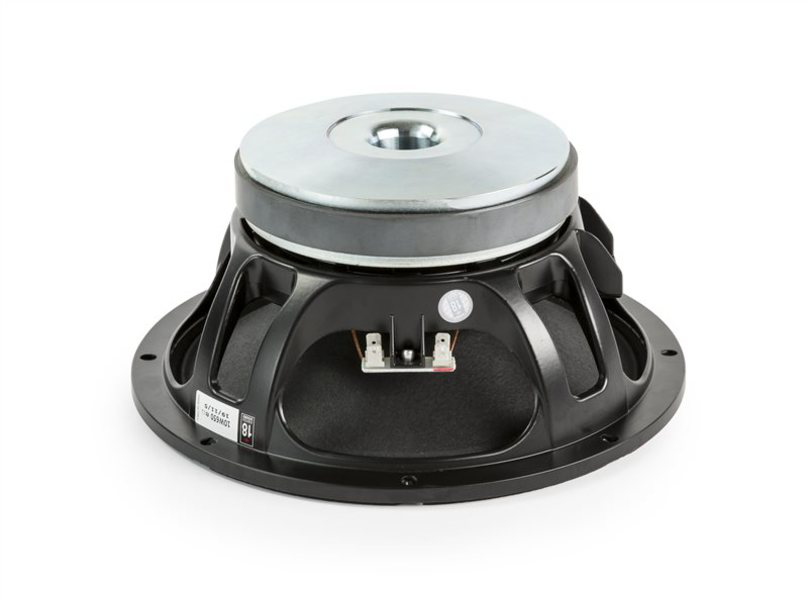

18 Sound’s 10W650 ceramic low frequency transducer is a 10-inch woofer
that combines excellent linearity with high power handling capabilities
(700 W) and reduced power compression. The 65mm (2.5 in)
state-of-the-art voice coil assembly incorporates a fine edge-wound
aluminum wire together with a strong fiberglas former to get the
necessary force factor, mass lightness and high power handling. The
voice coil is cooled using airways between the chassis back plate and
the magnet face plate, which allow heated air from the voice coil and
gap to be channeled away and dissipated by the chassis basket. This
technology is another product of 3D CAD resource application by our
engineers. The magnetic structure has also been optimized using our
in-house FEA CAD resource which has maximized the flux density in the
voice coil gap.
A distortion reduction system has been implemented using a demodulating
ring for flux modulation cancellation related to voice coil excursion.
The cone is treated against extremely aggressive environment conditions
and is carried by a double half-roll suspension composed of a material
which is more resistant to aging and fatigue than traditional materials,
providing the correct damping and excursion control. DATENBLATT
18 Sound’s 10W650 ceramic low frequency transducer is a 10-inch woofer
that combines excellent linearity with high power handling capabilities
(700 W) and reduced power compression. The 65mm (2.5 in)
state-of-the-art voice coil assembly incorporates a fine edge-wound
aluminum wire together with a strong fiberglas former to get the
necessary force factor, mass lightness and high power handling. The
voice coil is cooled using airways between the chassis back plate and
the magnet face plate, which allow heated air from the voice coil and
gap to be channeled away and dissipated by the chassis basket. This
technology is another product of 3D CAD resource application by our
engineers. The magnetic structure has also been optimized using our
in-house FEA CAD resource which has maximized the flux density in the
voice coil gap.
A distortion reduction system has been implemented using a demodulating
ring for flux modulation cancellation related to voice coil excursion.
The cone is treated against extremely aggressive environment conditions
and is carried by a double half-roll suspension composed of a material
which is more resistant to aging and fatigue than traditional materials,
providing the correct damping and excursion control. DATENBLATT

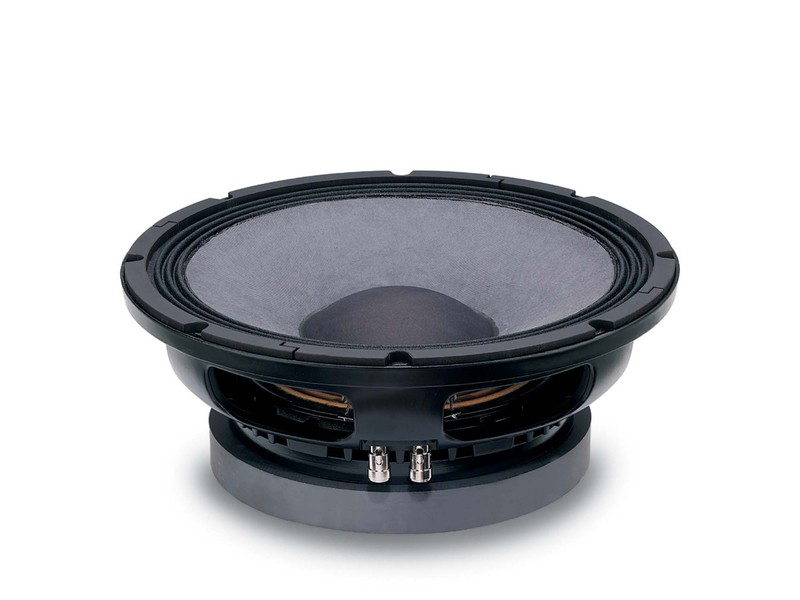

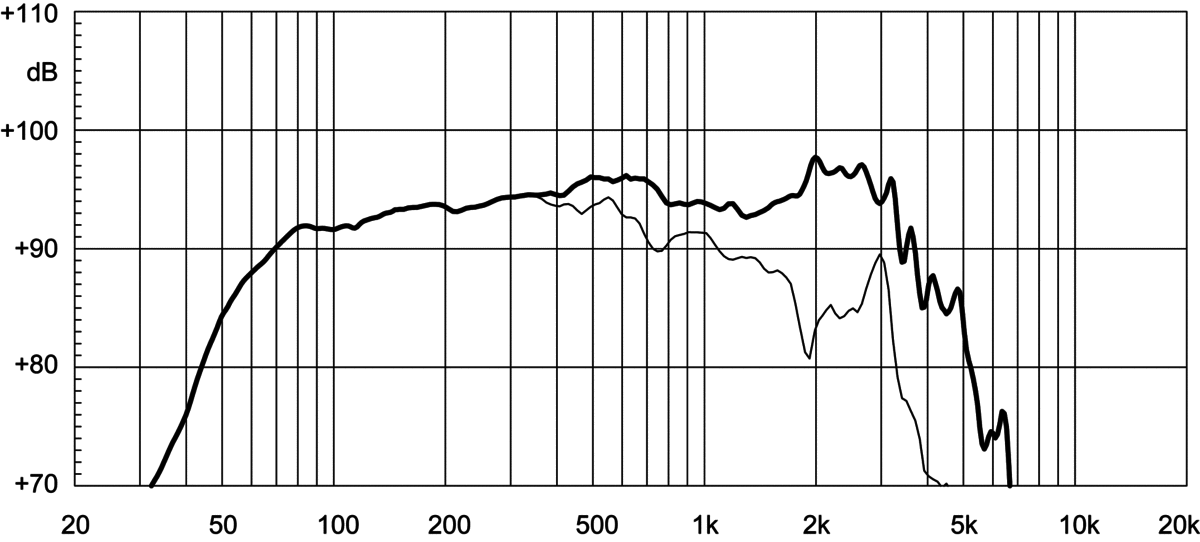

The 12LW1400 is an extended low frequency loudspeaker which sets a new
industry standard in 12" (300 mm) 4" voice coil high performance
transducers, already accomplished by the 15LW1400 and 18LW1400
respectively. The transducer has been designed for subwoofer or low
frequency component usage in multi-way systems where considerable
amounts of power and low distortion are needed. 12LW1400 is ideally
suited for very high loading cabinets, such as bandpass, horn loaded or
compact reflex configurations. In its reflex configuration, 12LW1400 can
be used in extremely compact enclosures (30 - 60 lt), making it the
ideal choice for touring applications, sound reinforcement or fixed
installations, including indoor and outdoor concert reinforcement
systems. Maximum strength, smooth response and high displacement piston
motion are obtained using Double Silicon Spider technology (DSS) and a
large excursion surround. A special formulation cone material has been
used to enable it to withstand high loading and high power peaks. The
suspension system has been designed to give symmetric large signal
behavior across the whole working range, providing low harmonic
distortion at different excitation levels. An inside outside aluminum
voice coil, based on Interleaved Sandwich Voice coil (ISV) provides high
levels of thermal stability and durability. The ISV technology is based
on a high strength fiberglas former with half the coil wound on the
outside and half on the inside ensuring uniform thermal dissipation on
both sides. It is bonded together using unique high temperature resin
adhesive to achieve a balanced and solid linear motor unit. Double
Demodulation Rings (DDR) technology dramatically reduces the
intermodulation and harmonic distortion whilst improving the transient
response. The top plate and back plate design have been optimized for
cone excursion and maximum symmetric force factor by the use of in-house
FEA Magnetic simulation software. Furthermore, excellent heat
dissipation has been achieved by the special basket design which
incorporates air channels between the basket and magnetic top plate. The
12LW1400 exclusive cone treatment improves pulp strength and gives
water repellent properties to both sides of the cone. In addition, the
special coating of both the top and back plates makes them far more
resistant to the corrosive effects of salts and oxidization than
standard zinc-coated treatment.DATENBLATT

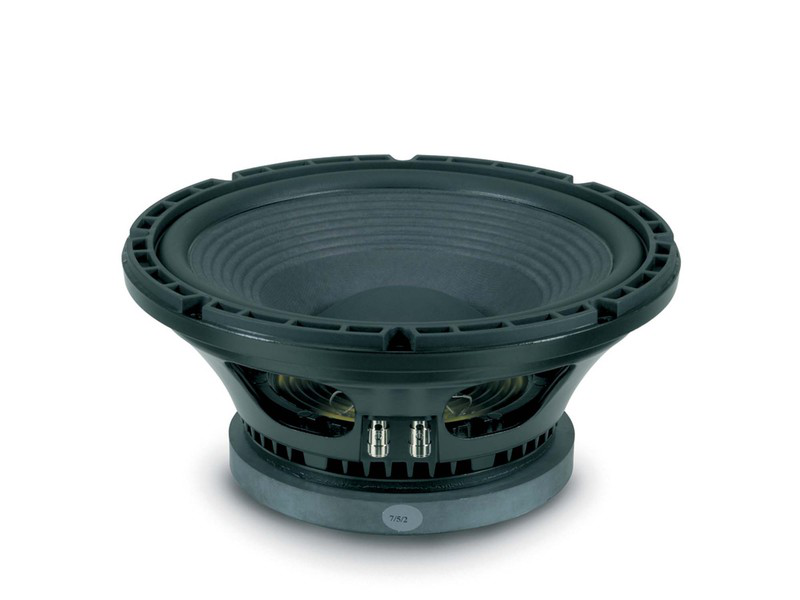

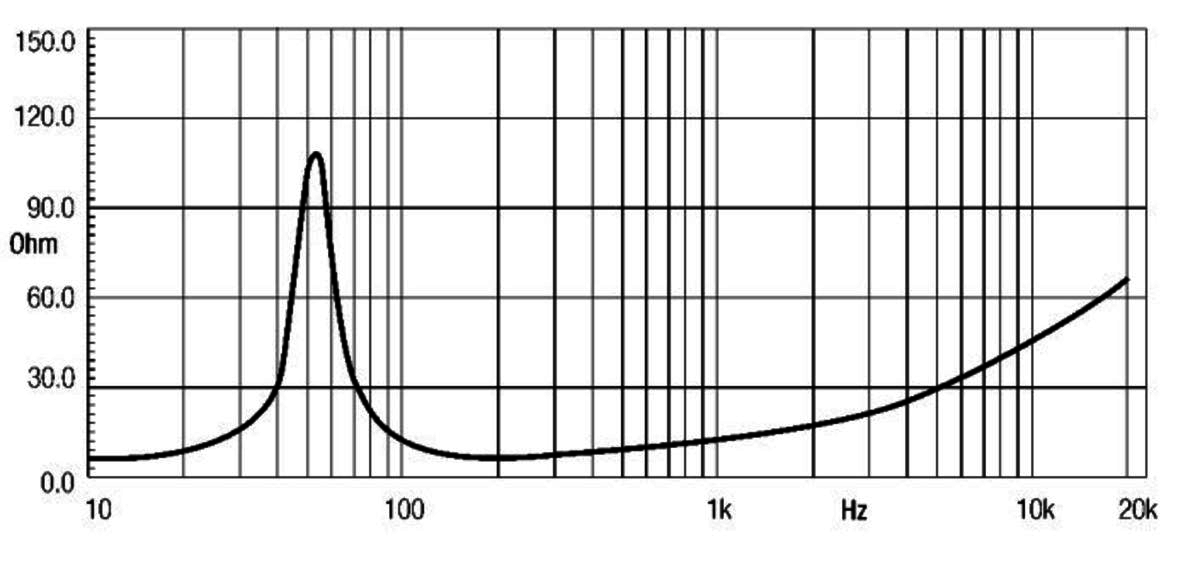

The 12LW800 is a low frequency loudspeaker which sets a new industry
standard in 12" (300mm) Ø high performance transducers, achieving a
remarkable 42Hz downwards extension with 96dB average sensitivity,
handling peak power levels of 4000W with remarkably low distortion and
excellent transient response.
The 12LW800 is intended as the low bass or sub-woofer component, either
in highly compact reflex, bandpass or horn loaded configurations, to
provide clean, linear frequency reproduction at high power levels, or
as part of a compact high power fullrange system. In its reflex
configuration it can be used in extremely compact enclosures (40 - 70lt)
making it ideally suited to portable applications such as road shows
and bass musical instruments, for “wedge” stage monitors, etc.
The high excursion capabilities of the double-action roll surround and
suspension system, in conjunction with the Eighteen Sound Double Silicon
Spider (DSS), has enabled the 12LW800 to achieve very high levels of
linear travel for a 12" unit.
The carbon fibre reinforced curvilinear ribbed cone, with its custom
design surround, assures smooth response and exceptional strength with
maximum reliability under high mechanical stress.
The 75mm Ø state-of-the-art voice coil is similar to that fitted to our
18LW1400 top-of-the-range model. It employs our Interleaved Sandwich
Voice coil (ISV) in which a high strength fiberglas former carries
windings on both the outer and inner surfaces to achieve a mass balanced
coil and providing a uniform motive drive. This, in conjunction with
the use of unique high temperature resin adhesives, results in an
extremely linear motor assembly with reduced tendency to break-up under
high drive conditions.
Excellent heat dissipation is achieved by the incorporation of air channels between the basket and top plate.
Maximum flux concentration and force factor in the gap is assured by the
unique shape and design of the face and back plates, these having been
researched and designed using our in-house Magnetic Flux FEA CAD
resource.
With the increasing use of high power audio systems at outdoor events or
in a marine environment, the ability to perform properly under
inclement weather conditions is another part of the Eighteen Sound
philosophy. This is achieved by means of an exclusive cone treatment
improving pulp strength and giving water repellent properties to the
cone. In addition, special treatment of both the face and back plates
results in a product which is far more resistant to the corrosive
effects of salts and oxidisation than any other treatment in use.DATENBLATT

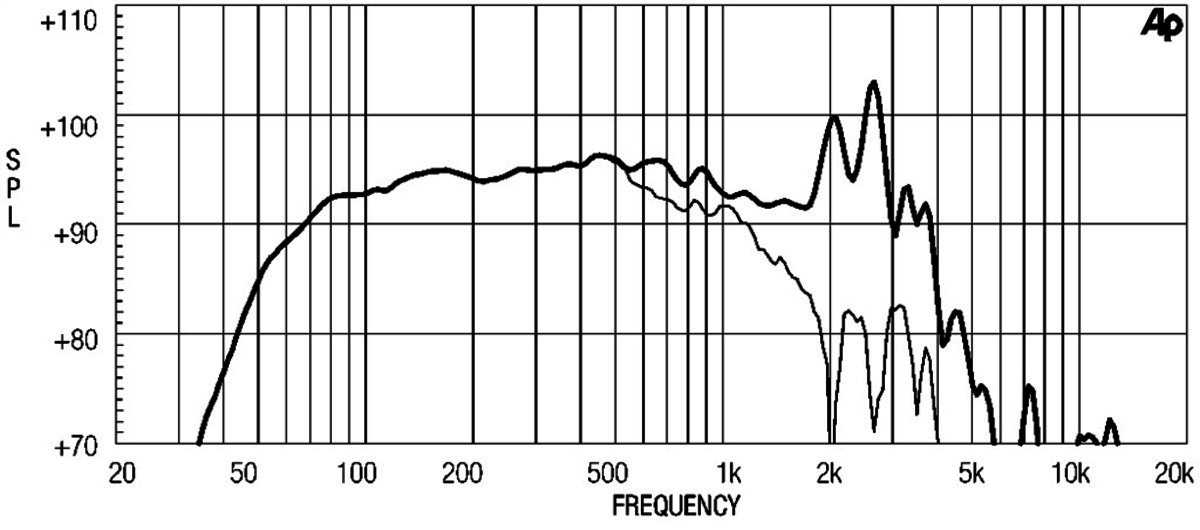

The 12LW801 is a 12" low frequency driver, achieving high SPL at low frequencies with reduced THD.
The 12LW801 has been designed for use as a low bass or sub-woofer
component, in either highly compact reflex, bandpass or horn loaded
configurations. It provides clean, linear frequency reproduction at high
power levels, or as part of a compact high power fullrange system. In
its reflex configuration, it can be used in extremely compact enclosures
(40 – 70 lt), making it ideal for portable applications, such as road
shows or use with bass musical instruments.
The high excursion capabilities of the double-action roll surround and
suspension system, in conjunction with Eighteen Sound’s Double Silicon
Spider technology (DSS), enable the 12LW801 to achieve exceptionally
high levels of linear travel for a 12" unit.
With its custom design surround, the carbon fiber reinforced curvilinear
ribbed cone assures smooth response and exceptional strength, with
maximum reliability under high mechanical stress.
The 75 mm state-of-the-art voice coil is similar to that of our 18LW1400
top-of-the-range model. It employs Interleaved Sandwich Voice coil
(ISV), in which a high strength fiberglas former carries windings on
both its outer and inner surfaces, resulting in a mass balanced coil and
providing a uniform motive drive. This, in conjunction with the use of
unique high temperature resin adhesives, creates an extremely linear
motor assembly with a reduced tendency for break-up under hard drive
conditions. Excellent heat dissipation has been achieved by
incorporating air channels between the basket and the top plate.
Maximum flux concentration and force factor in the gap is assured by the
unique shape and design of the top and back plates, designed using our
in-house Magnetic Flux FEA CAD resource.
Due to the increasing use of high power audio systems at outdoor events
or in marine environments, the ability to perform properly under
inclement weather conditions is an essential part of the Eighteen Sound
philosophy. This is achieved using an exclusive cone treatment which
improves pulp strength and gives water repellent properties to the cone.
In addition, a special treatment is applied to the top and back plates
making the loudspeaker resistant to the corrosive effects of salts and
oxidization. This treatment is more effective than after any other
treatment in use today.DATENBLATT

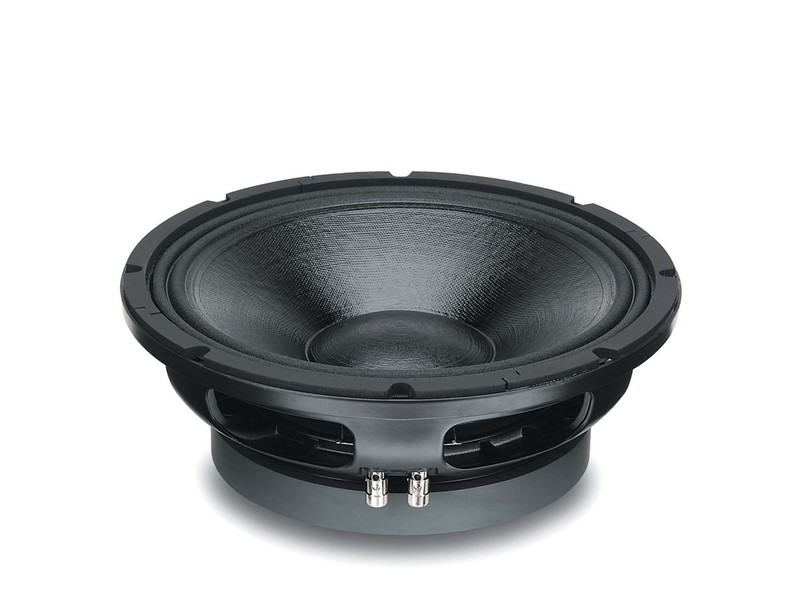

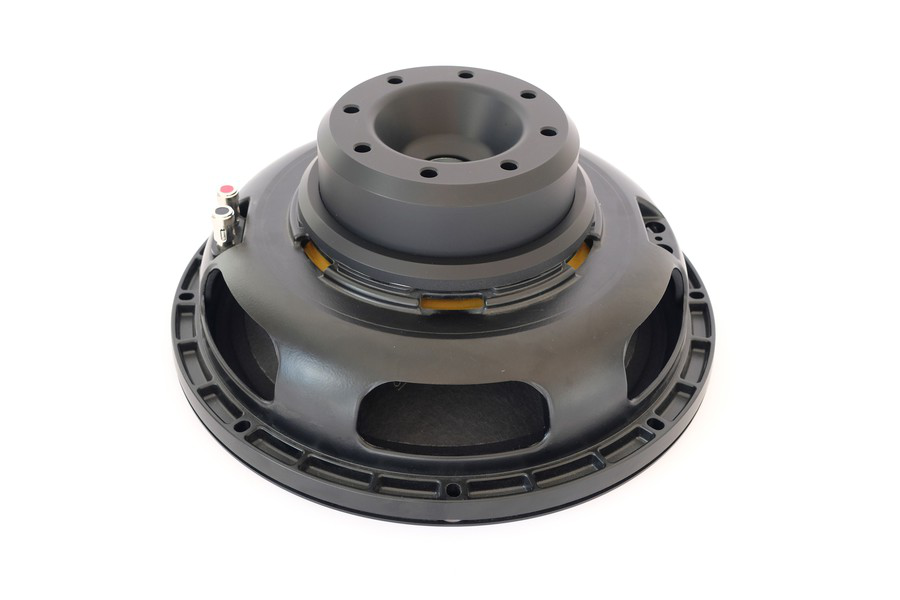

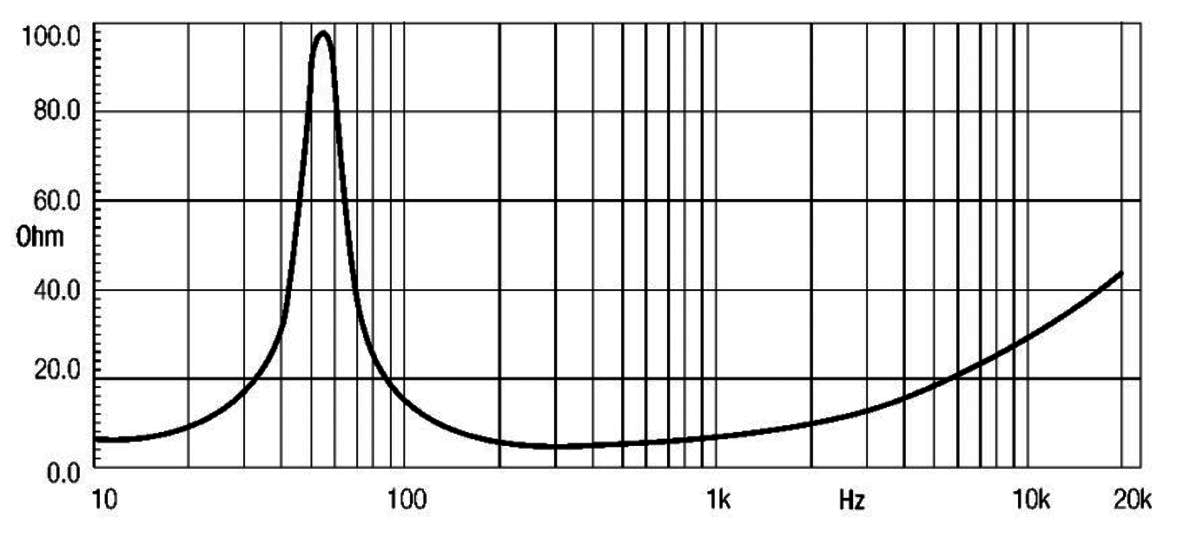

The 12MB1000 is a very high performance 12" midbass driver. It offers high power handlingcapability with exceptional sensitivity over the midbass frequency range. It can be used witheither direct radiating or horn loaded applications, as well as part of a 2 or 3-way system. It isideally used in stage monitor, auditorium, touring and outdoor systems. The smooth curvilinearpaper cone has a special high strength wood pulp composition designed to achieve the bestpossible linearity within the middle frequency range and to control bell-mode resonancesaround the cone. The cone is carried by a double half-roll suspension, which is more resistant toaging and fatigue than traditional materials, and provides the correct dampening and excursioncontrol. The state-of-the-art voice coil employs our Interleaved Sandwich Voice coil (ISV)technology, in which a high strength fiberglas former carries windings on both the outer andinner surfaces. By mean of a balanced coil with uniform distribution of mass and motive energy,this technology assures an extremely linear motor assembly. The voice coil cooling has beenachieved by incorporating airways between the chassis back plate and the top plate of themagnet which allow heated air from the voice coil and gap to be channeled away and dissipatedby the chassis basket. This technology is the result of a meticulous design exercise using asophisticated in-house 3D CAD facility. The magnetic structure has also been optimized usingour in-house FEA CAD resource to maximize flux density in the voice coil gap. Eighteen SoundR&D has developed a special cone treatment specifically dedicated to improve the dampeningproperties of the moving assembly, thus considerably improving the transient response control.This treatment also gives water repellent properties to the cone, enabling the 12MB1000 to beused in humid environments without damage.DATENBLATT

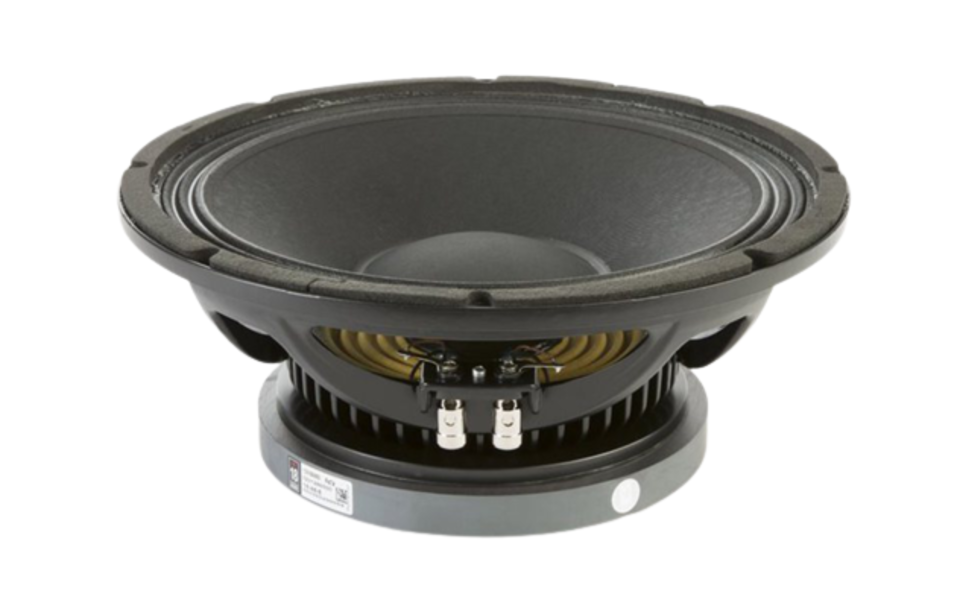

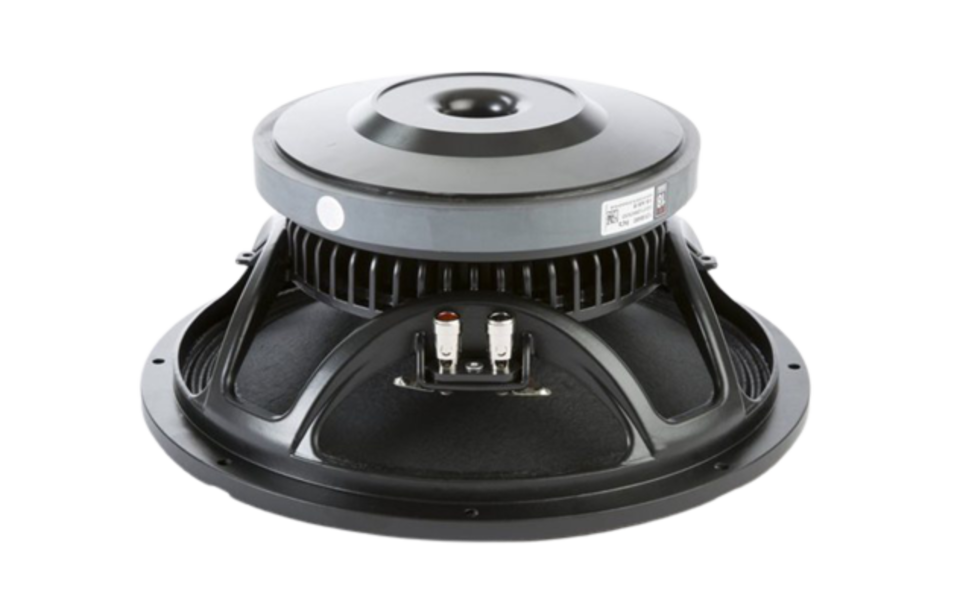

The 12MB650 is a high sensitivity midbass driver with 800W program power
handling capabilities. The 12MB650 can be used as either a bass/mid
driver in compact 2-way reflex enclosures or in high quality stage
monitor applications. Eighteen Sound engineers have obtained the best
possible results with today's available materials in terms of clean and
undistorted LF reproduction at a ultra high SPL, with the lowest
possible power compression figure. Its curvilinear paper cone made from a
special high strength wood pulp, has been designed to achieve the best
possible linearity within its intended frequency range and to control
bell-mode resonances around the cone circumference. The cone is carried
by a triple roll suspension formed of a linen-like material, which is
more resistant to aging and fatigue than traditional materials. The 65
mm (2.5 in) diameter state-of-the-art voice coil is made with edgewound
aluminum wire winded over a high strength fiberglas former. This results
in an extremely linear motor assembly with a reduced tendency for
eccentric behavior when driven hard. Voice coil cooling has been
achieved by incorporating airways between the chassis back plate and the
top plate of the magnet, allowing heated air from the voice coil and
gap to be channeled away and dissipated by the chassis basket. Special
attention was given to the optimization of air flow into the gap without
introducing audible noise. A special low-density material air
diffractor placed into the heatsink acts as a cooling system, increasing
the power handling capability and lowering the power compression
figure. The magnetic structure has been optimized using FEA CAD
resource, maximizing the flux density in the voice coil gap. Due to the
increasing use of high power audio systems at outdoor events or in
marine environments, the ability to perform properly under inclement
weather conditions is a key feature in Eighteen Sound philosophy. Hence,
an exclusive treatment has been applied to the cone giving it water
repellent properties. In addition, another special treatment has been
applied to the top and back plates making the transducer far more
resistant to the corrosive effects of salts and oxidization.DATENBLATT
The 12MB700 is a very high sensitivity (101.5 dB 1W/1m) midbass driver
with high power handling capabilities. The 12MB700 can be used as either
a bass/mid driver in compact 2-way reflex enclosures or as a direct
radiating or horn loaded, dedicated midrange driver, in multi-way
touring and fixed installation concert and arena systems. Its
curvilinear paper cone made from a special high strength wood pulp, has
been designed to achieve the best possible linearity within its intended
frequency range and to control bell-mode resonances around the cone
circumference. The cone is carried by a multiroll suspension formed of a
linen-like material, which is more resistant to aging and fatigue than
traditional materials. The 75 mm diameter state-of-the-art voice coil
is similiar to those fitted to our top-of-the-range 18" and 15" models
but it is wound with aluminum wire. It employs our Interleaved Sandwich
Voice coil (ISV) technology in which a high strength fiberglas former
carries windings on both the outer and inner surfaces to achieve a mass
balanced coil. This results in an extremely linear motor assembly with a
reduced tendency for eccentric behavior when driven hard. The
excellent performance capabilities of this loudspeaker are further
enhanced by the Double Demodulating Rings (DDR) designed to dramatically
reduce the intermodulation and harmonic distortion and improve
transient response. The magnetic structure has been optimized using FEA
CAD resource, maximizing the flux density in the voice coil gap. Voice
coil cooling has been achieved by incorporating airways between the
chassis back plate and the top plate of the magnet, allowing heated air
from the voice coil and gap to be channeled away and dissipated by the
chassis basket. Due to the increasing use of high power audio systems
at outdoor events or in marine environments, the ability to perform
properly under inclement weather conditions is a key feature in Eighteen
Sound philosophy. Hence, an exclusive treatment has been applied to the
cone giving it water repellent properties. In addition, another special
treatment has been applied to the top and back plates making the
transducer far more resistant to the corrosive effects of salts and
oxidization.DATENBLATT
The 12MB700 is a very high sensitivity (101.5 dB 1W/1m) midbass driver
with high power handling capabilities. The 12MB700 can be used as either
a bass/mid driver in compact 2-way reflex enclosures or as a direct
radiating or horn loaded, dedicated midrange driver, in multi-way
touring and fixed installation concert and arena systems. Its
curvilinear paper cone made from a special high strength wood pulp, has
been designed to achieve the best possible linearity within its intended
frequency range and to control bell-mode resonances around the cone
circumference. The cone is carried by a multiroll suspension formed of a
linen-like material, which is more resistant to aging and fatigue than
traditional materials. The 75 mm diameter state-of-the-art voice coil
is similiar to those fitted to our top-of-the-range 18" and 15" models
but it is wound with aluminum wire. It employs our Interleaved Sandwich
Voice coil (ISV) technology in which a high strength fiberglas former
carries windings on both the outer and inner surfaces to achieve a mass
balanced coil. This results in an extremely linear motor assembly with a
reduced tendency for eccentric behavior when driven hard. The
excellent performance capabilities of this loudspeaker are further
enhanced by the Double Demodulating Rings (DDR) designed to dramatically
reduce the intermodulation and harmonic distortion and improve
transient response. The magnetic structure has been optimized using FEA
CAD resource, maximizing the flux density in the voice coil gap. Voice
coil cooling has been achieved by incorporating airways between the
chassis back plate and the top plate of the magnet, allowing heated air
from the voice coil and gap to be channeled away and dissipated by the
chassis basket. Due to the increasing use of high power audio systems
at outdoor events or in marine environments, the ability to perform
properly under inclement weather conditions is a key feature in Eighteen
Sound philosophy. Hence, an exclusive treatment has been applied to the
cone giving it water repellent properties. In addition, another special
treatment has been applied to the top and back plates making the
transducer far more resistant to the corrosive effects of salts and
oxidization.DATENBLATT
The 12NCX750 is a 12" neodymium coaxial transducer designed for use in
compact reflex enclosures and stage monitors as small as 40 lt with a
nominal dispersion of 80 degrees. The curvilinear profile LF cone
provides smooth response within its intended frequency range thanks to
its high damping pulp composition.The 75mm (3in) LF copper voice coil
employs Interleaved Sandwich Voice coil (ISV) technology, in which a
high strength former carries windings on both the outer and inner
surfaces. This results in a balanced coil with a uniform distribution of
mass and motive energy and an extremely linear motor assembly.
The low distortion and sound quality are further improved by an aluminum
demodulating ring (SDR technology) that flatten LF impedance and phase
with constant power transfer.Equipped with proprietary hybrid radial
tangerine phase plug, the integrated HF compression driver has been
designed to give smooth coherent wavefront in the horn entrance in all
working frequency range with an high level of manufacturing consistency.
The phase plug, with its short openings and high flare rate value,
assures low distortion and remarkable improvements in mid-high frequency
reproduction. A copper sleeve reduces inductance value above 10 kHz,
improving phase and impedance linearisation.
The 2.4" diameter HF diaphragm assembly uses a high strength, high
temperature treated Nomex voice coil former joined directly to the
titanium diaphragm on its upper bend edge, assuring extended frequency
energy transfer. This improves linearity and shows unparalleled
reliability when compared with a straight former joint. A specific HF
exit profile design has been chosen in order to maximize the cone’s
profile coupling. The high force neodymium single magnet structure makes
the 12NCX750 a lightweight speaker for its performance class - only 4,7
kg (10.36 lb). The XO12NCX dedicated passive crosssover filter is
offered, making this neo coaxial speaker a ready-to-use transducer
system. Due to the widespread use of high power audio systems at outdoor
events, the ability to perform in adverse weather conditions is an
additional key feature of the 12NCX750. This has been achieved using
exclusive cone and magnet plate treatment processes which increase
resistance against corrosion and make the cone water repellent.DATENBLATT
The
12NCX750H is a 12" neodymium coaxial transducer designed for use in
compact reflex enclosures and stage monitors as small as 40lt with a
nominal dispersion of 70x50 degrees.
The curvilinear profile LF cone provides smooth response within its
intended frequency range thanks to its high damping pulp composition.
The 75mm (3in) LF copper voice coil employs Interleaved Sandwich Voice
coil (ISV) technology, in which a high strength former carries windings
on both the outer and inner surfaces. This results in a balanced coil
with a uniform distribution of mass and motive energy and an extremely
linear motor assembly. The low distortion and sound quality are further
improved by an aluminum demodulating ring (SDR technology) that flattens
LF impedance and phase with constant power transfer.
Equipped with a proprietary hybrid radial tangerine phase plug, the
integrated HF compression driver has been designed to give a smooth,
coherent wavefront at the horn entrance in all working frequency ranges
with an high level of manufacturing consistency. The phase plug, with
its short openings and high flare rate value, assures low distortion and
remarkable improvements in mid-high frequency reproduction. A copper
sleeve reduces the inductance value above 10kHz, improving phase and
impedance linearization.
The 2.4" diameter HF diaphragm assembly uses a high strength, high
temperature treated Nomex voice coil former joined directly to the
titanium diaphragm on its upper bend edge, assuring extended frequency
energy transfer. This improves linearity and shows unparalleled
reliability when compared with a straight former joint. A specific HF
exit profile design has been chosen in order to maximize the cone’s
profile coupling.
The high force neodymium single magnet structure makes the 12NCX750H a
lightweight speaker for its performance class - only 4.7 kg (10.36 lb).
The XO12NCX dedicated passive crossover filter is provided, making this neo coaxial speaker a ready-to-use transducer system.
Due to the widespread use of high power audio systems at outdoor
events, the ability to perform in adverse weather conditions is an
additional key feature of the 12NCX750H. This has been achieved using
exclusive cone and magnet plate treatment processes which increase
resistance against corrosion and make the cone water repellent.DATENBLATT
The 12NCX910 is a 12" diameter neodymium coaxial transducer designed for
use in compact reflex enclosures and stage monitors as small as 25 lt
with a nominal dispersion of 80 degrees.The curvilinear profile LF
cone provides smooth response within its intended frequency range thanks
to its high damping pulp composition.The 75 mm (3 in) LF copper
voice coil employs our Interleaved Sandwich Voice coil (ISV) technology,
in which a high strength former carries windings on both the outer and
inner surfaces. This results in a balanced coil with a uniform
distribution of mass and motive energy and an extremely linear motor
assembly.The low distortion and sound quality are further improved
by an aluminum demodulating ring (SDR technology) that flatten LF
impedance and phase with a constant power transfer. Equipped with
proprietary architecture, the integrated HF compression driver has been
designed to give smooth coherent wavefront in the horn entrance in all
working frequency range and high level manufacturing consistency,
assuring low distortion and remarkable improvements in mid-high
frequency reproduction. A copper ring on the pole piece reduces the
inductance figure of frequencies above 10 kHz, improving phase and
impedance linearization.The 3" diameter HF diaphragm assembly uses a
high strength, high temperature treated Nomex voice coil former joined
directly to the titanium diaphragm on its upper bend edge, assuring
extended frequency energy transfer. This improves linearity and shows
unparalleled reliability when compared with a straight former joint.A specific HF exit profile design has been chosen in order to maximize the cone’s profile coupling.Due
to the widespread use of high power audio systems at outdoor events,
the ability to perform in adverse weather conditions is an additional
key feature of the 12NCX910. This has been achieved using exclusive cone
and magnet plate treatment processes which increase resistance against
corrosion and make the cone water repellent.DATENBLATT
The 12NCX910N is a 12" diameter neodymium coaxial transducer designed
for use in compact reflex enclosures and stage monitors as small as 25
lt with a nominal dispersion of 80 degrees.The curvilinear profile
LF cone provides smooth response within its intended frequency range
thanks to its high damping pulp composition.The 75 mm (3 in) LF
copper voice coil employs our Interleaved Sandwich Voice coil (ISV)
technology, in which a high strength former carries windings on both the
outer and inner surfaces. This results in a balanced coil with a
uniform distribution of mass and motive energy and an extremely linear
motor assembly.The low distortion and sound quality are further
improved by an aluminum demodulating ring (SDR technology) that flatten
LF impedance and phase with a constant power transfer. Equipped with
proprietary architecture, the integrated HF compression driver has been
designed to give smooth coherent wavefront in the horn entrance in all
working frequency range and high level manufacturing consistency,
assuring low distortion and remarkable improvements in mid-high
frequency reproduction. A copper ring on the pole piece reduces the
inductance figure of frequencies above 10 kHz, improving phase and
impedance linearization.The 3" diameter HF diaphragm assembly uses a
high strength, high temperature treated Nomex voice coil former joined
directly to the titanium diaphragm which is treated with our proprietary
nitride coat to improve stiffness, assuring extended frequency energy
transfer. This improves linearity and shows unparalleled reliability
when compared with a straight former joint.A specific HF exit profile design has been chosen in order to maximize the cone’s profile coupling.Due
to the widespread use of high power audio systems at outdoor events,
the ability to perform in adverse weather conditions is an additional
key feature of the 12NCX910N. This has been achieved using exclusive
cone and magnet plate treatment processes which increase resistance
against corrosion and make the cone water repellent.DATENBLATT
The 12ND610 has been specifically designed for use either as a midbass
driver in compact 2-way reflex enclosures or as a direct radiating or
horn loaded, dedicated midrange driver, in multi-way touring and fixed
installation concert and arena systems.The neodymium magnet assembly
assures high flux concentration, low power compression and excellent
heat exchange because the external magnet configuration is considerably
more efficient than traditional under-pole magnet topology.Consequently, high levels of force factor and power handling with an optimum power to weight ratio have been achieved.Direct
coupling of the special design basket and magnetic assembly with the
large heat sink facilitates thermal flux through the ambient air,
increasing the power handling capabilities and lowering the power
compression.The curvilinear paper cone has been created with a
special high strength wood pulp designed to achieve the best possible
linearity within its intended frequency range and to control bell-mode
resonances around the cone circumference. The cone is carried by a
multiroll suspension formed from a linen-like material which is more
resistant to aging and fatigue than traditional materials.The
12ND610 implements Interleaved Sandwich Voice coil technology (ISV), in
which an aluminum coil is wound inside and outside a high strength
fiberglas former, providing a better thermal and mechanical performance
than conventional coils.A proprietary humidity-block cone treatment
makes the transducer suitable for outdoor use in adverse weather
conditions. In addition, a special coating applied to both the top and
back plates makes the 12ND610 far more resistant to the corrosive
effects of salts and oxidization.DATENBLATT
The 12ND610 is an extremely high output neodymium mid-bass transducer
perfect for high quality professional systems. It has been designed for
midrange and midbass frequency reproduction in horn-loaded, as well as
bass-reflex compact enclosures.
The transducer's extremely powerful neodymium magnet assembly assures
high flux concentration, low power compression and excellent heat
exchange. The levels of force factor and power handling result in the
best power to weight ratio on the market today.
12ND610 curvilinear paper cone has been designed by 18 Sound engineers
with a special high-strength wood pulp to achieve the best possible
linearity within its intended frequency range and to control bell-mode
resonances around the cone circumference.
Its cone is capable of carrying significant loadings thanks to a
dedicated reinforcing treatment. The cone is carried by a multiroll
suspension built from a linen-like material, which is more resistant to
aging and fatigue than traditional materials.
The 75 mm (3 in) state-of-the-art inside outside voice coil is similar
to the one fitted to our top-of-the-range 18" and 15" models but it's
wound with aluminum wire. It employs the Interleaved Sandwich Voice coil
(ISV) technology in which a high strength fiberglas former carries
windings on both the outer and inner surfaces to achieve a mass balanced
coil.
The final result is an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard.
A proprietary humidity-block cone treatment makes the transducer
suitable for outdoor use in adverse weather conditions. In addition, a
special coating applied to both the top and back plates makes the
12ND610 far more resistant to the corrosive effects of salts and
oxidization.
DATENBLATT
The 12ND710 has been specifically designed for use either as a midbass
driver in compact 2-way reflex enclosures or as a direct radiating or
horn loaded, dedicated midrange driver, in multi-way touring and fixed
installation concert and arena systems.The neodymium magnet assembly
assures high flux concentration, low power compression and excellent
heat exchange because the external magnet configuration is considerably
more efficient than traditional under-pole magnet topology.Consequently, high levels of force factor and power handling with an optimum power to weight ratio have been achieved.Direct
coupling of the special design basket and magnetic assembly with the
large heat sink facilitates thermal flux through the ambient air,
increasing the power handling capabilities and lowering the power
compression.The curvilinear paper cone has been created with a
special high strength wood pulp designed to achieve the best possible
linearity within its intended frequency range and to control bell-mode
resonances around the cone circumference. The cone is carried by a
multiroll suspension formed from a linen-like material which is more
resistant to aging and fatigue than traditional materials.The
already low distortion and sound quality are further improved by the use
of Double Demodulating Rings technology (DDR) designed to dramatically
reduce the intermodulation and harmonic distortion and improve the
transient response.The 12ND710 implements Interleaved Sandwich Voice
coil technology (ISV), in which an aluminum coil is wound inside and
outside a high strength fiberglas former, providing a better thermal and
mechanical performance than conventional coils.A proprietary
humidity-block cone treatment makes the transducer suitable for outdoor
use in adverse weather conditions. In addition, a special coating
applied to both the top and back plates makes the 12ND710 far more
resistant to the corrosive effects of salts and oxidization.DATENBLATT
The 12ND710 has been specifically designed for use either as a midbass
driver in compact 2-way reflex enclosures or as a direct radiating or
horn loaded, dedicated midrange driver, in multi-way touring and fixed
installation concert and arena systems.The neodymium magnet assembly
assures high flux concentration, low power compression and excellent
heat exchange because the external magnet configuration is considerably
more efficient than traditional under-pole magnet topology.Consequently, high levels of force factor and power handling with an optimum power to weight ratio have been achieved.Direct
coupling of the special design basket and magnetic assembly with the
large heat sink facilitates thermal flux through the ambient air,
increasing the power handling capabilities and lowering the power
compression.The curvilinear paper cone has been created with a
special high strength wood pulp designed to achieve the best possible
linearity within its intended frequency range and to control bell-mode
resonances around the cone circumference. The cone is carried by a
multiroll suspension formed from a linen-like material which is more
resistant to aging and fatigue than traditional materials.The
already low distortion and sound quality are further improved by the use
of Double Demodulating Rings technology (DDR) designed to dramatically
reduce the intermodulation and harmonic distortion and improve the
transient response.The 12ND710 implements Interleaved Sandwich Voice
coil technology (ISV), in which an aluminum coil is wound inside and
outside a high strength fiberglas former, providing a better thermal and
mechanical performance than conventional coils.A proprietary
humidity-block cone treatment makes the transducer suitable for outdoor
use in adverse weather conditions. In addition, a special coating
applied to both the top and back plates makes the 12ND710 far more
resistant to the corrosive effects of salts and oxidization.DATENBLATT
The 12ND730 transducer has been designed to meet market demand for high
output woofers, capable of providing deep bottom-end in bandpass, horn
or small reflex enclosures. The level of distortion is kept very low
within its application range.
The 12ND730 is suitable for high loading enclosures, such as subwoofers
or 2-way system reflex enclosures when coupled with a 1.4"-2"
compression driver.
The neodymium magnet assembly developed by Eighteen Sound engineers
assures high flux concentration, low power compression and excellent
heat exchange since the external magnet configuration is considerably
more efficient than traditional under-pole magnet topology. This results
in high levels of force factor and power handling with an optimum power
to weight ratio.
The deep profile curvilinear cone, made from a special high strength
wood pulp has been designed to achieve the best possible linearity
within its frequency range. The cone surround made from a linen-like
material is highly resistant to aging and fatigue. The in-house
developed cone treatment is fully water repellent and also gives a
significant degree of rigidity to the cone.
The 75 mm Interleaved Sandwich Voice coil (ISV) assembly is wound on a
strong fiberglas former that improves force transmission and thermal
power handling.
The 4 threaded backplate holes give the user the possibility to insert
an external-customised heat sink if further heat dissipation is
required.
A special coating applied to both the top and back plates makes the
12ND730 far more resistant to the corrosive effects of salts and
oxidization.DATENBLATT
