Faital PRO 12FH520 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
334,00 €*
|
| Bis 4 |
331,00 €*
|
| Bis 6 |
328,00 €*
|
| Ab 7 |
325,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11874
Produktinformationen "Faital PRO 12FH520 8 Ohm"
12FH520 - 12" - 600 W - 98 dB - 8 Ohm - 12FH520
Technische Daten Faital PRO 12FH520 8 Ohm

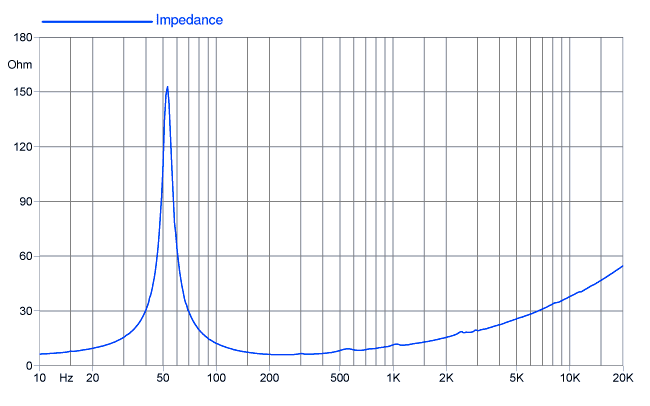

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.3 Ohm |
| AES Power Handling | 600 W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency Range | 50÷4000 Hz |
| Flux Density | 1.1 T |
| Magnet | Neodymium Slug |
| Demodulation | Aluminum Ring |
| Cone Surround | Triple Roll |
| Fs | 50 Hz |
| Re | 5.1 Ohm |
| Qes | 0.30 |
| Qms | 11.1 |
| Qts | 0.29 |
| Vas | 73.7 dm^3 (2.60 ft^3) |
| Sd | 540 cm^2 (83.70 in^2) |
| Xmax | 7.25 mm |
| Xdamage | 19.5 mm |
| Mms | 56.0 g |
| Bl | 17.3 N/A |
| Le | 0.74 mH |
| Mmd | 41.8 g |
| Cms | 0.18 mm/N |
| Rms | 1.6 kg/s |
| Eta Zero | 2.98 % |
| EBP | 167 Hz |

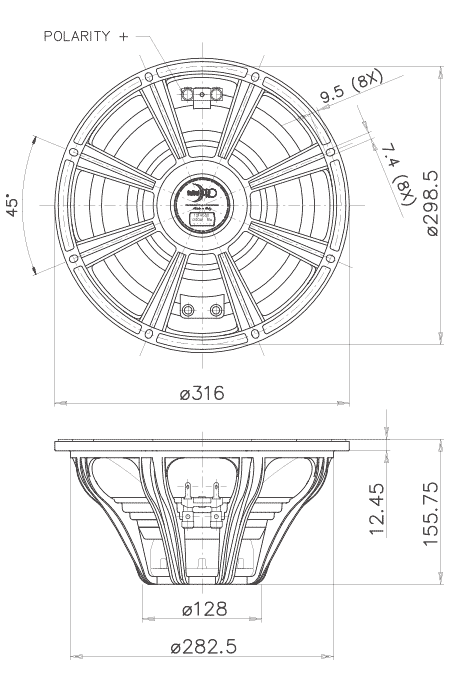

Mechanische Daten 12FH520
| Nominal Diameter | 300 mm (12 in) |
| Overall Diameter | 316 mm (12.44 in) |
| Bolt Circle Diameter | 298.5 mm (11.75 in) |
| Baffle Cutout Diameter | 284 mm (11.18 in) |
| Depth | 155.75 mm (6.13 in) |
| Flange and Gasket Thickness | 12.5 mm (0.49 in) |
| Net Weight | 4.2 kg (9.3 lb) |
| Shipping Box (Single Carton Box) |
350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in) |
| Shipping Weight | 5 kg (11.0 lb) |
Faital Pro 12FH520
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
