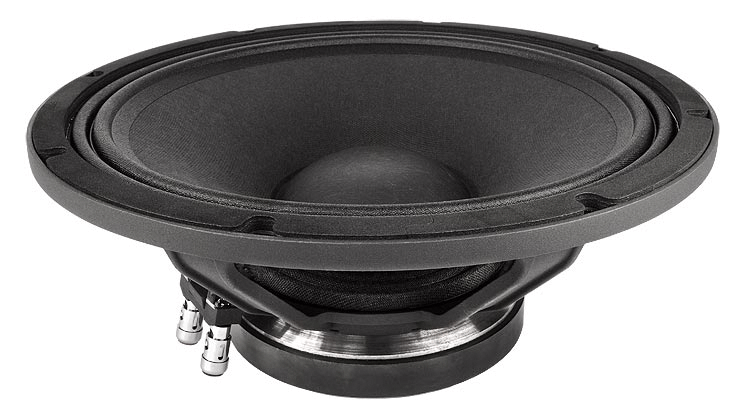

Faital PRO 12PR310 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
212,00 €*
|
| Bis 4 |
210,50 €*
|
| Bis 6 |
208,50 €*
|
| Ab 7 |
207,00 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11880
Produktinformationen "Faital PRO 12PR310 8 Ohm"
12PR310 - 12" - 300 W - 99 dB - 8 Ohm - 12PR310
Technische Daten Faital PRO 12PR310 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.7 Ohm |
| AES Power Handling | 300 W |
| Sensitivity (1W/1m) | 99 dB |
| Frequency Range | 50÷4000 Hz |
| Flux Density | 1.2 T |
| Magnet | Ferrite Ring |
| Demodulation | No |
| Cone Surround | M-Roll |
| Fs | 54 Hz |
| Re | 5.4 Ohm |
| Qes | 0.41 |
| Qms | 11.6 |
| Qts | 0.40 |
| Vas | 73.5 dm^3 (2.59 ft^3) |
| Sd | 533 cm^2 (82.62 in^2) |
| Xmax | 4.92 mm |
| Xdamage | 15.25 mm |
| Mms | 46.9 g |
| Bl | 14.4 N/A |
| Le | 0.61 mH |
| Mmd | 33.0 g |
| Cms | 0.19 mm/N |
| Rms | 1.4 kg/s |
| Eta Zero | 2.71 % |
| EBP | 132 Hz |

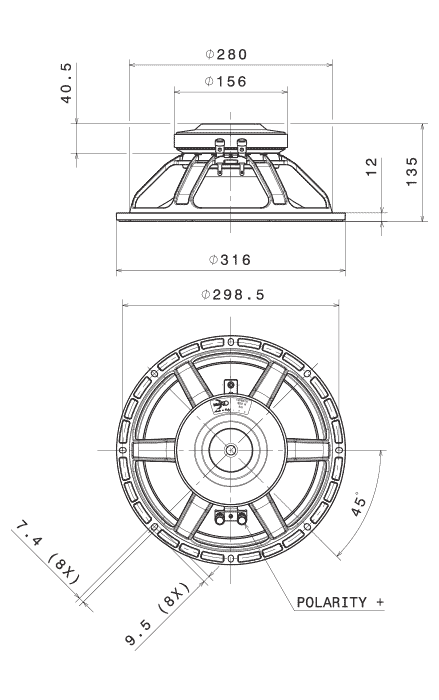

Mechanische Daten 12PR310
| Nominal Diameter | 300 mm (12 in) |
| Overall Diameter | 316 mm (12.44 in) |
| Bolt Circle Diameter | 298.5 mm (11.75 in) |
| Baffle Cutout Diameter | 282 mm (11.10 in) |
| Depth | 135 mm (5.31 in) |
| Flange and Gasket Thickness | 12 mm (0.47 in) |
| Net Weight | 4.3 kg (9.5 lb) |
| Shipping Box (Single Carton Box) |
350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in) |
| Shipping Weight | 5 kg (11.0 lb) |
Faital PRO 12PR310
| Coaxial: | NEIN |
|---|---|
| Größe: | 12" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,36 - 0,40 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
