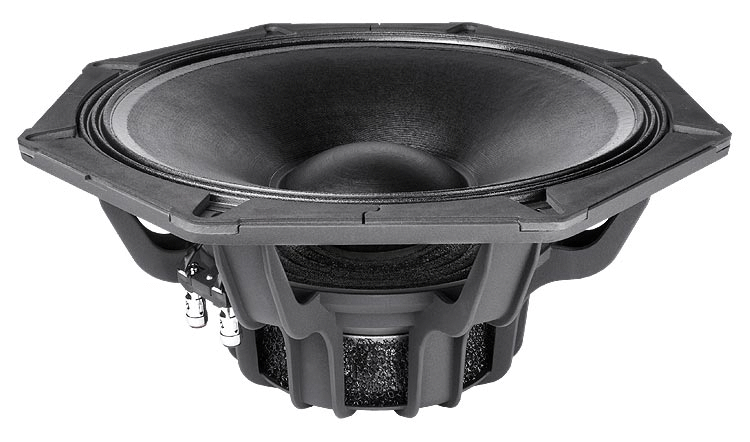

Faital PRO 15FX560 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
491,00 €*
|
| Bis 4 |
487,00 €*
|
| Bis 6 |
483,00 €*
|
| Ab 7 |
478,00 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11864
Produktinformationen "Faital PRO 15FX560 8 Ohm"
15FX560 - 15" - 700 W - 99 dB - 8 Ohm - 15FX560
Technische Daten Faital PRO 15FX560 8 Ohm

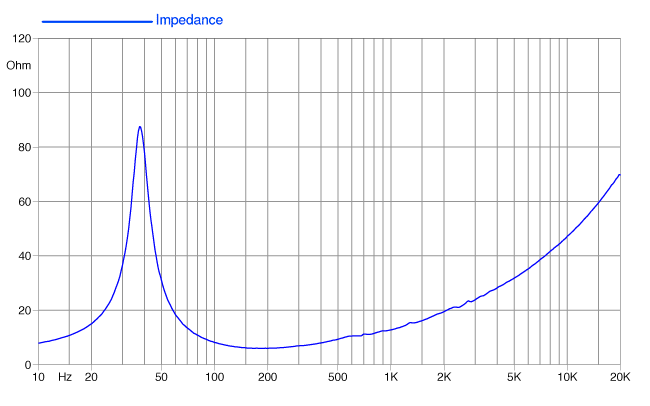

| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.5 Ohm |
| AES Power Handling | 700 W |
| Sensitivity (1W/1m) | 99 dB |

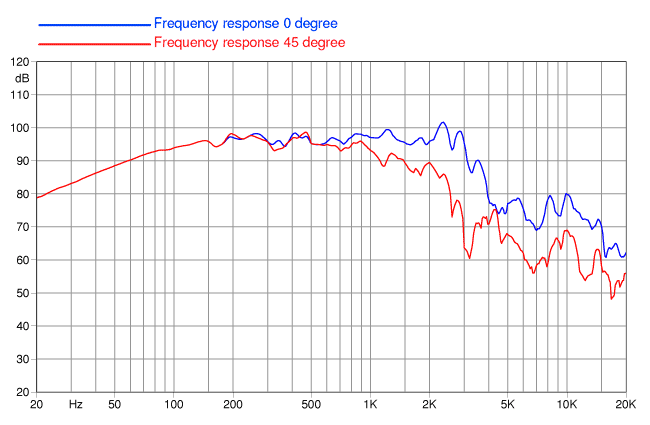

| Frequency Range | 40÷4000 Hz |
| Flux Density | 1.1 T |
| Magnet | Neodymium Slug Crown |
| Demodulation | Aluminum Ring |
| Cone Surround | Triple Roll |
| Fs | 38 Hz |
| Re | 5.2 Ohm |
| Qes | 0.31 |
| Qms | 6.8 |
| Qts | 0.30 |
| Vas | 159.0 dm^3 (5.62 ft^3) |
| Sd | 864 cm^2 (133.92 in^2) |
| Xmax | 9.42 mm |
| Xdamage | 21.8 mm |
| Mms | 115.0 g |
| Bl | 21.5 N/A |
| Le | 0.64 mH |
| Mmd | 86.3 g |
| Cms | 0.15 mm/N |
| Rms | 4.0 kg/s |
| Eta Zero | 2.74 % |
| EBP | 123 Hz |

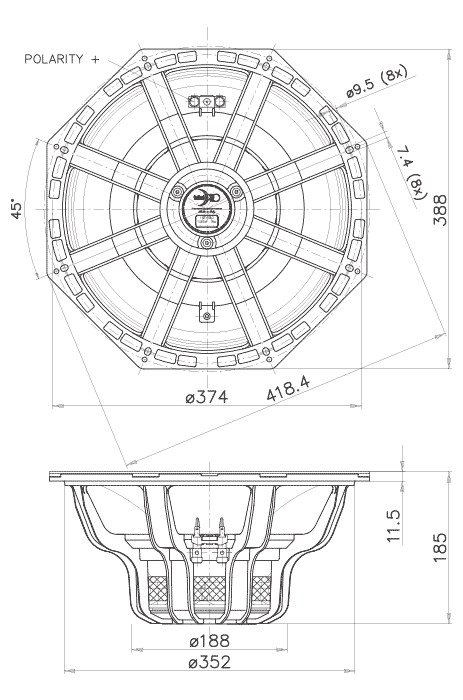

Mechanische Daten 15FX560
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 418.4/388 mm (16.46/15.28 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 354 mm (13.98 in) |
| Depth | 185 mm (7.28 in) |
| Flange and Gasket Thickness | 11.5 mm (0.45 in) |
| Net Weight | 7.5 kg (16.5 lb) |
| Shipping Box (Single Carton Box) |
430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) |
| Shipping Weight | 8.6 kg (19.0 lb) |
Faital Pro 15FX560
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
