Faital PRO 15HP1060 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
501,00 €*
|
| Bis 4 |
497,00 €*
|
| Bis 6 |
492,00 €*
|
| Ab 7 |
488,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11868
Produktinformationen "Faital PRO 15HP1060 8 Ohm"
15HP1060 - 15" - 1000 W - 97 dB - 8 Ohm - 15HP1060
Technische Daten Faital PRO 15HP1060 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.4 Ohm |
| AES Power Handling | 1000 W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency Range | 40÷2000 Hz |
| Flux Density | 1.22 T |
| Magnet | Neodymium Ring |
| Demodulation | Aluminum Ring |
| Cone Surround | Triple Roll |
| Fs | 40 Hz |
| Re | 5 Ohm |
| Qes | 0.32 |
| Qms | 11.4 |
| Qts | 0.31 |
| Vas | 100.3 dm^3 (3.54 ft^3) |
| Sd | 842 cm^2 (130.51 in^2) |
| Xmax | 12.45 mm |
| Xdamage | 21 mm |
| Mms | 156.3 g |
| Bl | 24.8 N/A |
| Le | 1.32 mH |
| Mmd | 128.7 g |
| Cms | 0.10 mm/N |
| Rms | 3.4 kg/s |
| Eta Zero | 1.95 % |
| EBP | 125 Hz |

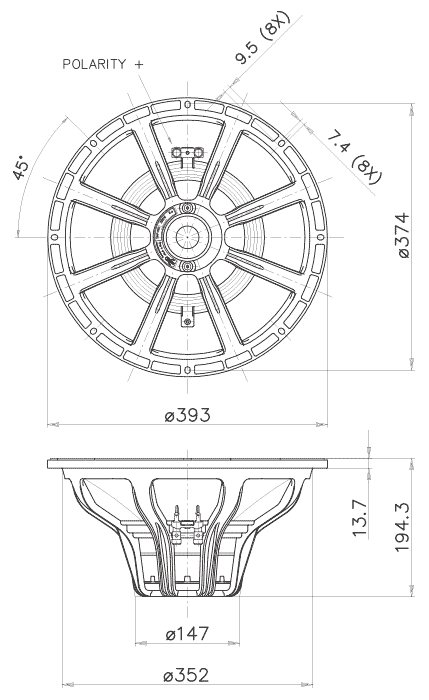

Mechanische Daten 15HP1060
| Nominal Diameter | 380 mm (15 in) |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 354 mm (13.94 in) |
| Depth | 194.3 mm (7.65 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 7.1 kg (15.7 lb) |
| Shipping Box (Single Carton Box) |
430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in) |
| Shipping Weight | 8.4 kg (18.5 lb) |
Faital Pro 15HP1060
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
