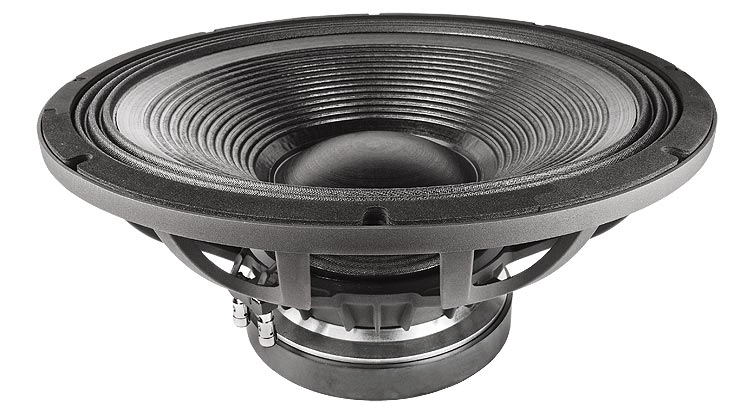

Faital PRO 18HP1030 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
461,00 €*
|
| Bis 4 |
456,50 €*
|
| Bis 6 |
452,50 €*
|
| Ab 7 |
448,50 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11858
Produktinformationen "Faital PRO 18HP1030 8 Ohm "
18HP1030 - 18" - 1200 W - 98 dB - 8 Ohm - 18HP1030
Technische Daten Faital PRO 18HP1030 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.5 Ohm |
| AES Power Handling | 1200 W |
| Sensitivity (1W/1m) | 98 dB |

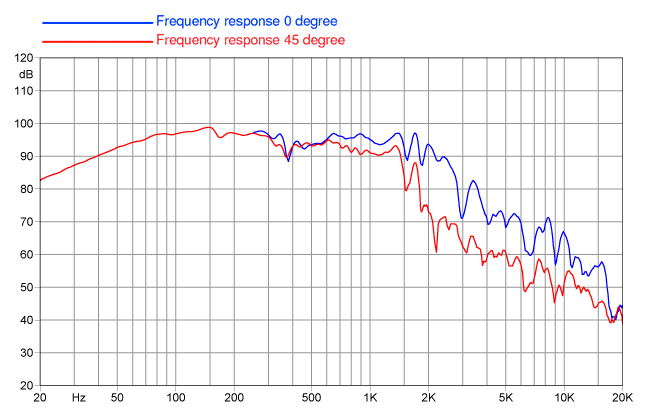

| Frequency Range | 35÷1600 Hz |
| Flux Density | 1.1 T |
| Magnet | Ferrite Ring |
| Demodulation | Aluminum Ring |
| Cone Surround | Triple Roll |
| Fs | 35 Hz |
| Re | 5 Ohm |
| Qes | 0.43 |
| Qms | 11.6 |
| Qts | 0.41 |
| Vas | 185.5 dm^3 (6.55 ft^3) |
| Sd | 1212 cm^2 (187.86 in^2) |
| Xmax | 12.45 mm |
| Xdamage | 23.1 mm |
| Mms | 228.6 g |
| Bl | 24.3 N/A |
| Le | 1.48 mH |
| Mmd | 180.9 g |
| Cms | 0.09 mm/N |
| Rms | 4.3 kg/s |
| Eta Zero | 1.81 % |
| EBP | 81 Hz |

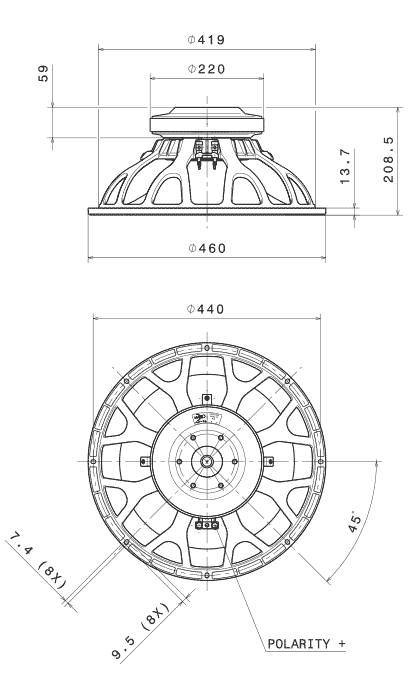

Mechanische Daten 18HP1030
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 421 mm (16.57 in) |
| Depth | 208.5 mm (8.20 in) |
| Flange and Gasket Thickness | 13.7 mm (0.54 in) |
| Net Weight | 12.1 kg (26.7 lb) |
| Shipping Box (Single Carton Box) |
503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 13.5 kg (29.8 lb) |
Faital Pro 18HP1030
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,41 - 0,50 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
