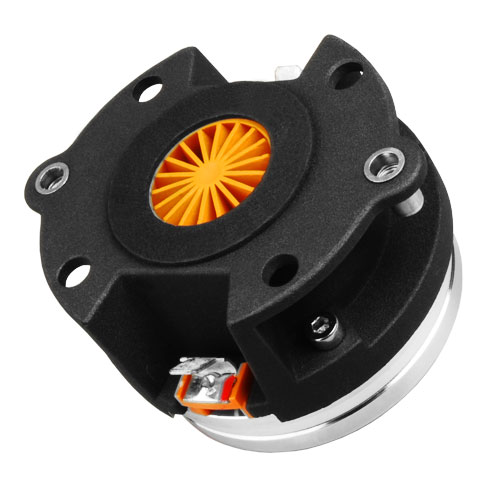

Faital PRO HF104 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
177,00 €*
|
| Bis 4 |
175,50 €*
|
| Bis 6 |
174,00 €*
|
| Ab 7 |
172,50 €*
|
Versandfertig in 10 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11914
Produktinformationen "Faital PRO HF104 8 Ohm"
HF104 - 1" - 40 W - 108 dB - 8 Ohm
Technische Daten Faital PRO HF104 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.9 Ohm |
| AES Power Handling | 40 W |
| Maximum Power Handling | 80 W |
| Minimum Crossover Frequency | 1.7 kHz |
| Sensitivity (1W/1m) | 108 dB |
| Frequency Range | 1.5÷20 kHz |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Winding Depth | 2.1 mm (0.08 in) |
| Magnetic Gap Depth | 2.6 mm (0.10 in) |
| Flux Density | 1.85 T |
| Magnet | Neodymium Ring |
| Re | 5.5 Ohm |
| Phase Plug Design | Radial |
| Exit Angle | Combined Exit |
| NET Air Volume filled by HF Driver |
0.16 dm^3 (0.006 ft^3) |

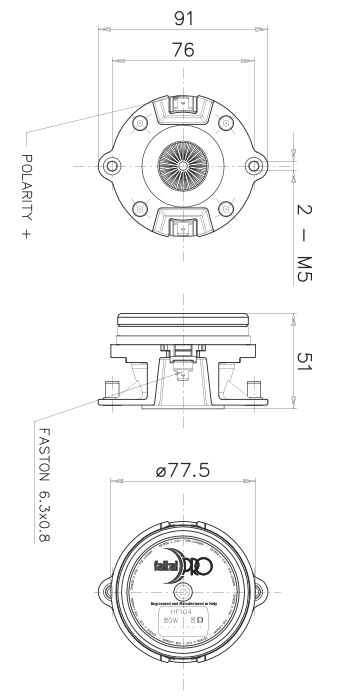

Mechanische Daten HF104
| Throat Diameter | 25.4 mm (1 in) |
| Overall Diameter | 91 mm (3.58 in) |
| 180° Mounting Holes Diameter (2xM5) | 76 mm (2.99 in) |
| Depth | 51 mm (2.01 in) |
| Net Weight | 670 g (1.5 lb) |
| Shipping Box (Single carton box) |
98 x 90 x 64 mm (3.9 x 3.5 x 2.5 in) |
| Shipping Weight | 700 g (1.5 lb) |
Faital PRO HF104
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
