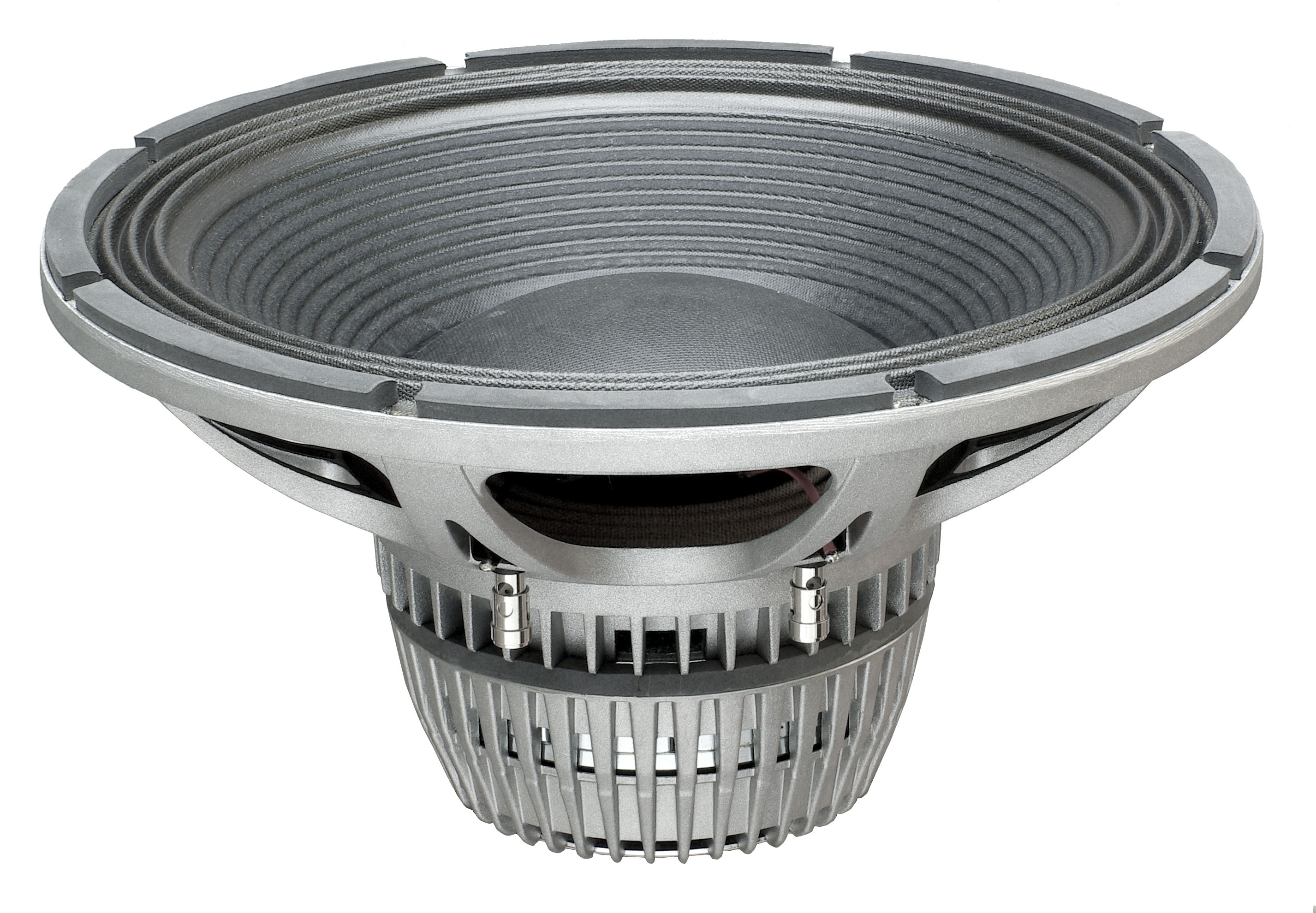

Oberton 15NXB1201 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
461,00 €*
|
| Bis 4 |
454,00 €*
|
| Bis 6 |
453,00 €*
|
| Ab 7 |
449,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11462
Produktinformationen "Oberton 15NXB1201 8 Ohm"
- Oberton 15NXB1201 8Ω
- 97 db 1W / 1m average sensitivity
- 100 mm high temperature split sandwich voice coil
- 2400 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Triple aluminium demodulating rings for lower distortion and improved heat dissipation
- Double silicon spider for improved excursion control and linearity
- Water protected cone (front)
Oberton 15NXB1201 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range V. C. Diameter Voice Coil Material Voice Coil Former Voice Coil Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
15"/388 inch/mm 8 Ohm 6.55 Ohm 1200 W 2400 W 97 dB/W/m (50 -1000 Hz) 38 - 1000 Hz 100 mm Copper Glass fiber 29 mm 10 mm Paper with carbone fibers Die Cast Aluminium Neodymium 1.27 T |
THIELE-SMALL PARAMETERS
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
38.49 Hz 8.255 0.337 0.324 111.94 litres 146.79 grams 5.3 Ohms 829.6 cm2 ±12 mm 0.117 mm/N 23.62 T.m 0.713 mH |

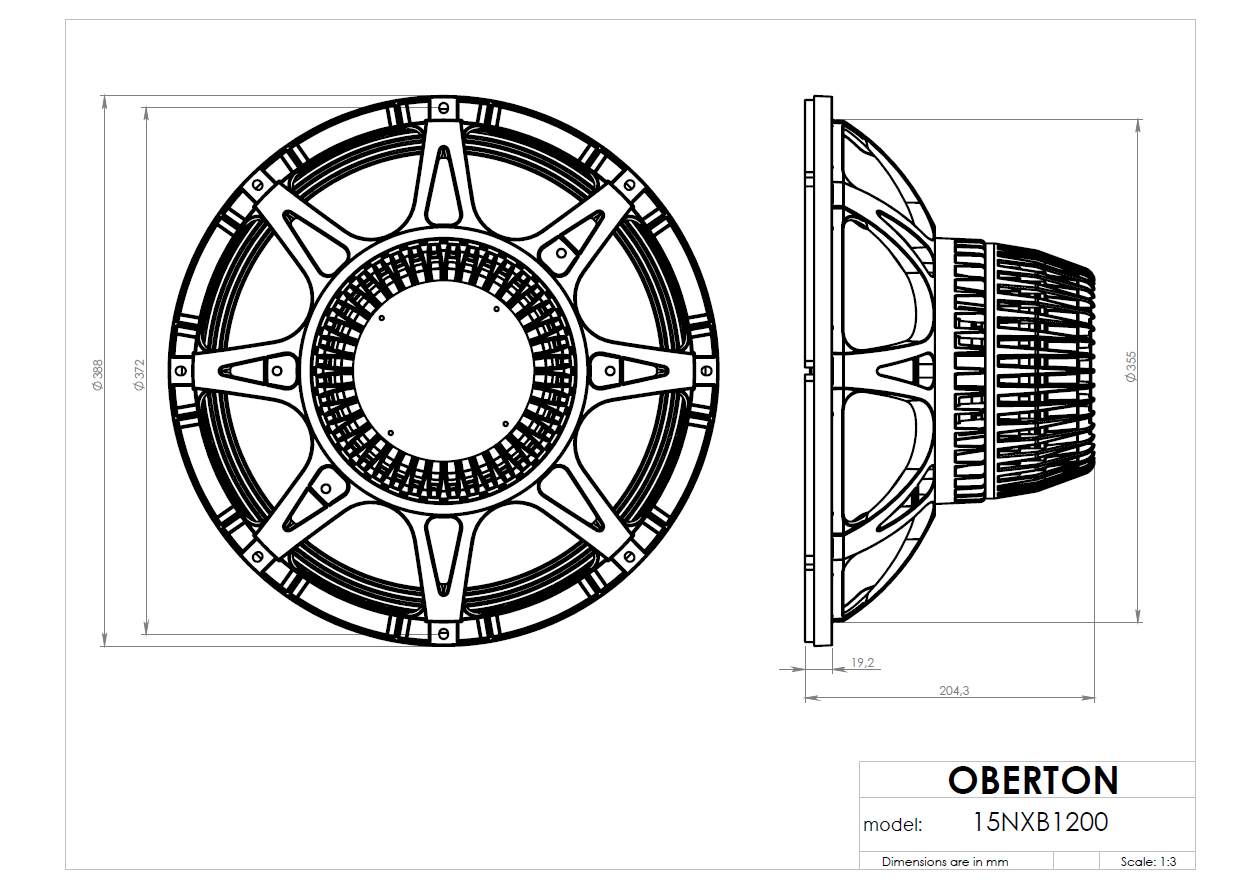

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
388 mm 355 mm 8 eliptic 7x8 mm 370/372 mm 204.3 mm 8.82 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 15" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
