Oberton D2525 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
60,00 €*
|
| Bis 4 |
59,60 €*
|
| Bis 6 |
59,30 €*
|
| Ab 7 |
59,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11581

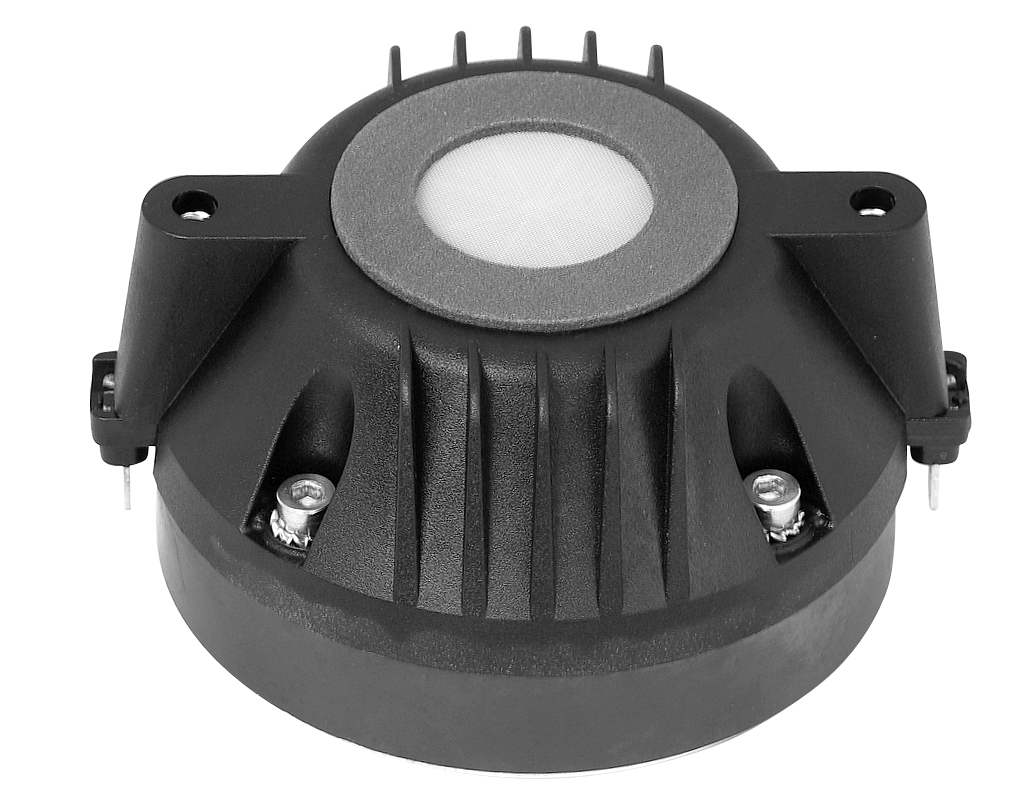

Produktinformationen "Oberton D2525 8 Ohm"
- Oberton D2525 8 Ohm
- 1" Throat diameter
- 25 mm (1 in.) voice coil
- 40 W Program Power Capacity (2-20 kHz)

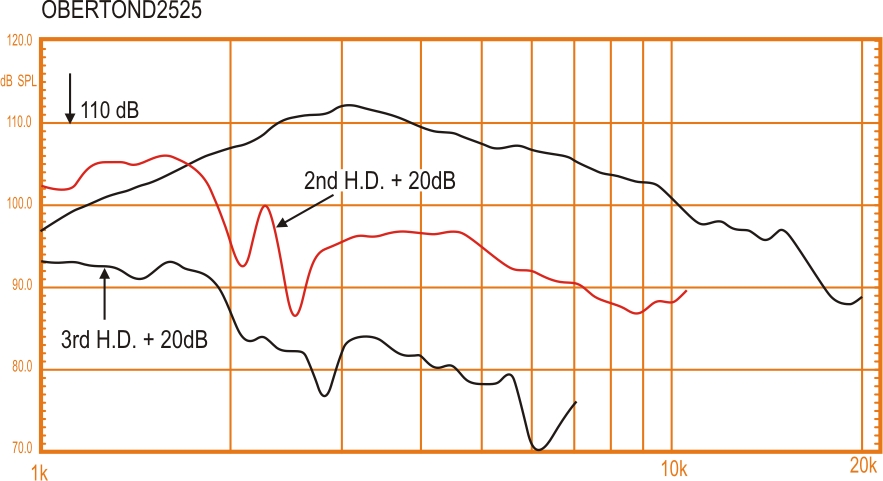

- 105 dB Sensitivity (2-15 kHz)
- Frequency range 1.5 - 20 kHz
|

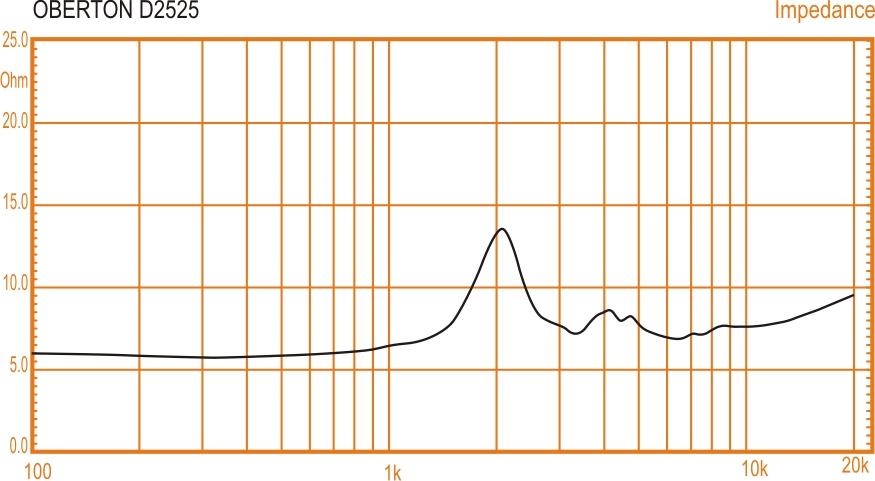

Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
25.4 mm (1 in.) 8 Ohms 6.74 Ohms 5.65 Ohms 20 W 40 W 105 dB 1.5 - 20 kHz 2.5 kHz or higher 12 dB/oct.min 25 mm (1 in.) 1.75 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

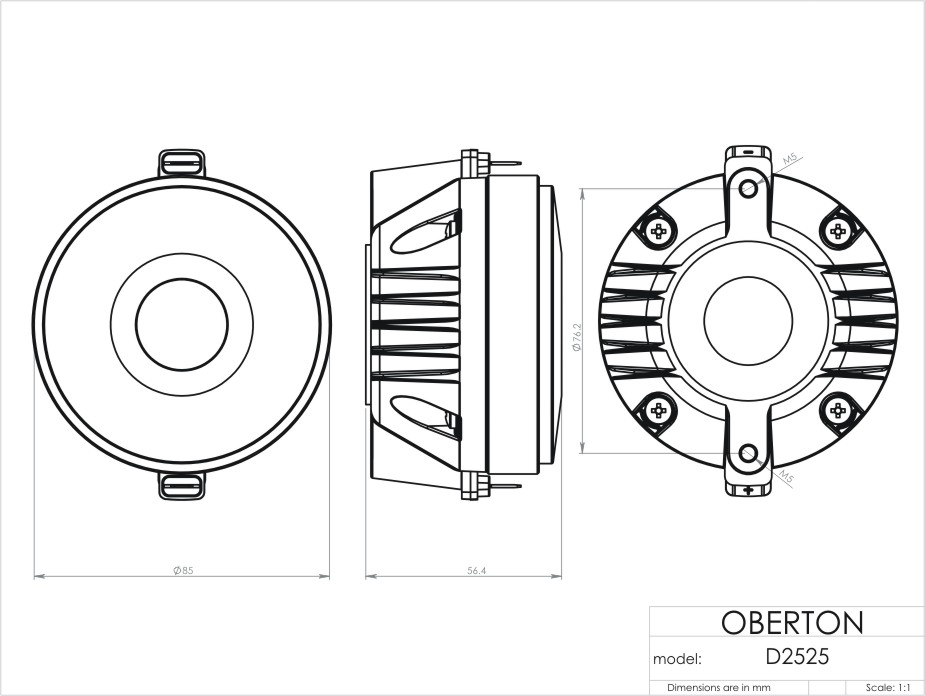

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
86 mm 58 mm 2 x M5 holes 180° on 76.2 mm (3 in.)diam 0.86 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
