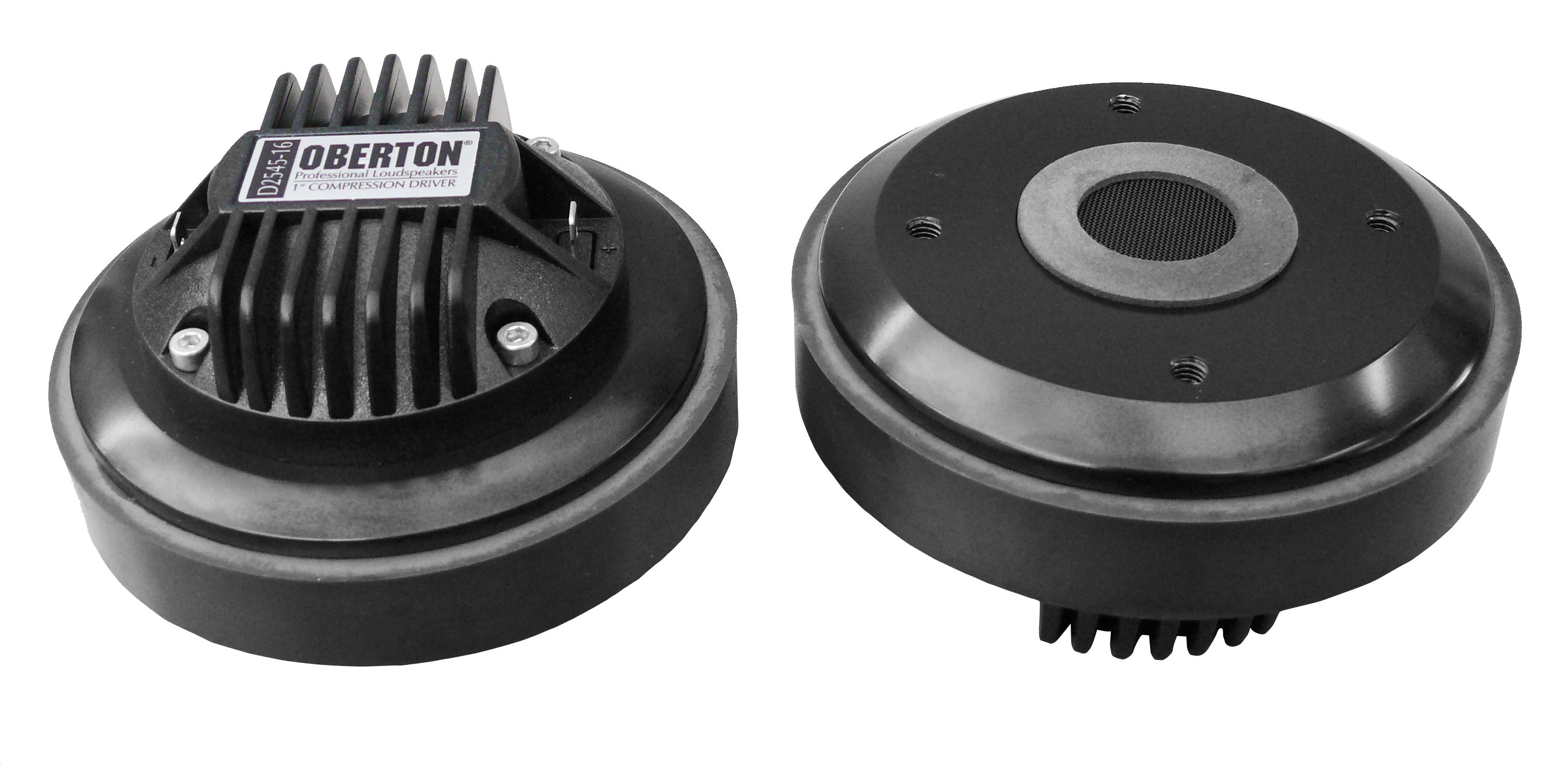

Oberton D2545 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
92,00 €*
|
| Bis 4 |
91,00 €*
|
| Bis 6 |
90,50 €*
|
| Ab 7 |
90,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11575
Produktinformationen "Oberton D2545 16 Ohm"
- Oberton D2545 16 Ohm
- 1" Throat diameter
- 44 mm (1.75 in.) voice coil
- 80 W Program Power Capacity (2-20 kHz)
- 109 dB Sensitivity (2-15 kHz)
- Frequency range 1 - 20 kHz
- Special anti-corrosion coating
Oberton D2545 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
25,4 mm (1 in.) 8/16 Ohms 6,4/12,7 Ohms 5,15/10,8 Ohms 40 W 80 W 109 dB 1 - 20 kHz 1,5 kHz or higher 12 dB/oct.min 44 mm (1,75 in.) 1,9 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

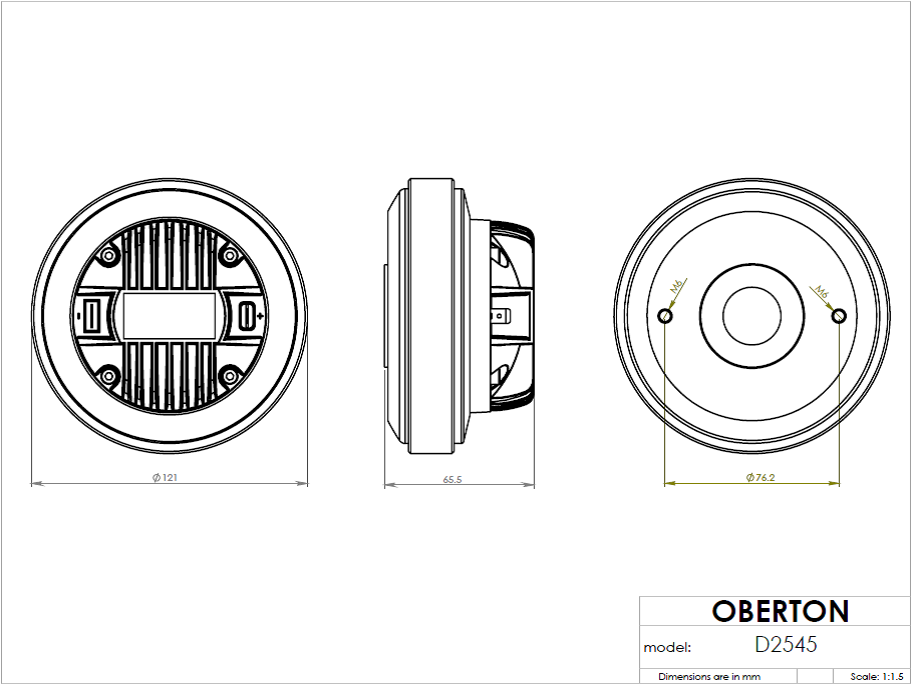

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
121 mm 70 mm 4 x M6 holes 90° on 76.2 mm (3 in.) diam 2,3 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
