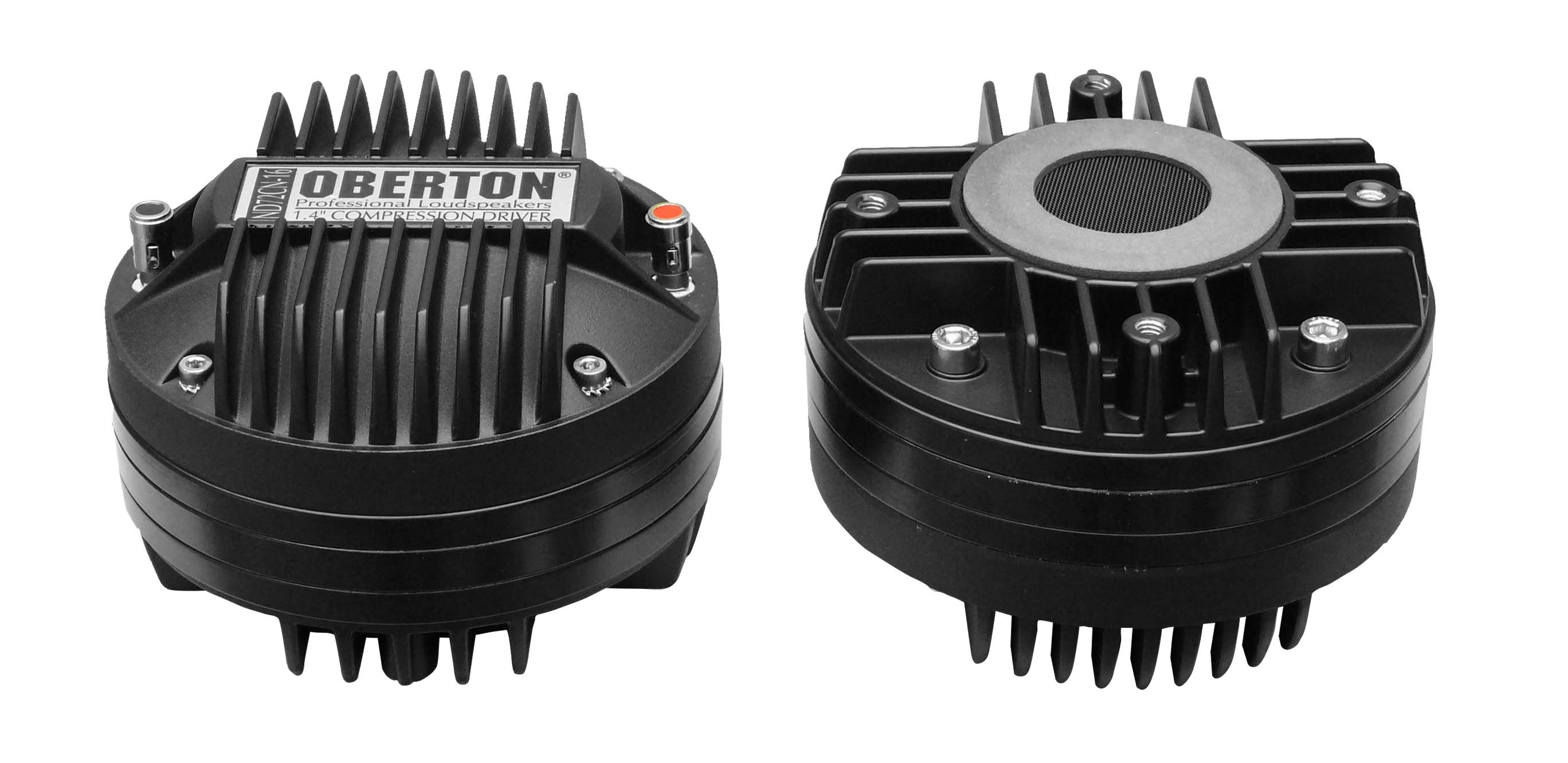

Oberton ND72CN 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
313,00 €*
|
| Bis 4 |
310,00 €*
|
| Bis 6 |
308,00 €*
|
| Ab 7 |
305,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11551
Produktinformationen "Oberton ND72CN 16 Ohm"
- Oberton ND72CN
- 1.4" Throat diameter
- 72 mm (2.85 in.) voice coil
- 200 W Program Power Capacity (1-20 kHz)
- 110 dB Sensitivity (1-10 kHz)
- Frequency range 0.5 - 18.5 kHz
- Neodymium magnetic structure
- Special anti-corrosion coating
Oberton ND72CN 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (1 - 10 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.) 8 / 16 Ohm 8,28 / 12,12 Ohm 6,7 / 9,5 Ohm 100 W 200 W 110 dB 0,5 - 18,5 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T |
THIELE-SMALL PARAMETERS
|
Diaphragm Voice coil material Voice coil former |
Carbon Composite CCAW Kapton™ |

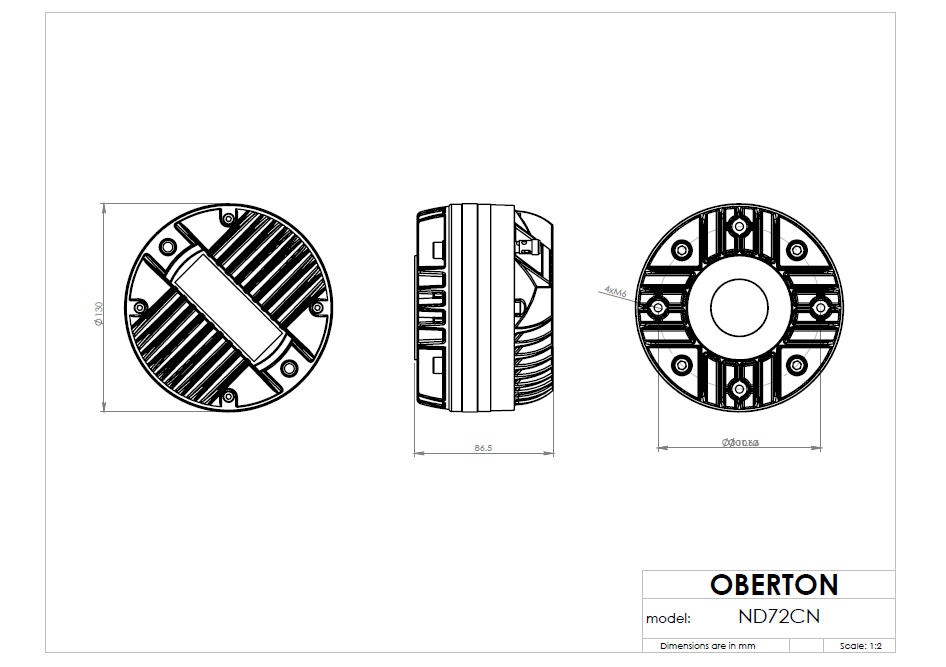

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
130 mm 87 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Beryllium / Nitride coated / Carbon |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
